Surface mount general purpose inductor with 4.7µH inductance and 20% tolerance. Features a 6A current rating, 19.5mΩ DC resistance, and shielded construction. Operates from -40°C to 150°C and meets AEC-Q200 standards. Packaged in tape and reel for automated assembly.
Package7040
Current Rating6A
MountingSurface Mount
Inductance4.7uH
Quick Jump:
Technical Specifications
Wurth Electronics 744311470 technical specifications.
General
| Package/Case | 7040 |
| Current Rating | 6A |
| DC Resistance (DCR) | 19.5mR |
| Depth | 6.9mm |
| Height | 3.8mm |
| Height - Seated (Max) | 0.157inch |
| Inductance | 4.7uH |
| Inductance Tolerance | 20% |
| Lead Free | Lead Free |
| Length | 7mm |
| Max DC Current | 6A |
| Max Operating Temperature | 150°C |
| Min Operating Temperature | -40°C |
| Mount | Surface Mount |
| Package Quantity | 1 |
| Packaging | Tape and Reel |
| Ratings | AEC-Q200 |
| Reach SVHC Compliant | Unknown |
| RMS Current (Irms) | 6A |
| RoHS Compliant | Yes |
| Saturation Current | 7A |
| Self Resonant Frequency | 33MHz |
| Series | WE-HCI |
| Series Resistance | 19.5R |
| Shielding | Shielded |
| Termination | SMD/SMT |
| Test Frequency | 100kHz |
| Tolerance | 20% |
| Width | 6.9mm |
Compliance
| RoHS | Compliant |
Datasheet
Wurth Electronics 744311470 Datasheet
Download the complete datasheet for Wurth Electronics 744311470 to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

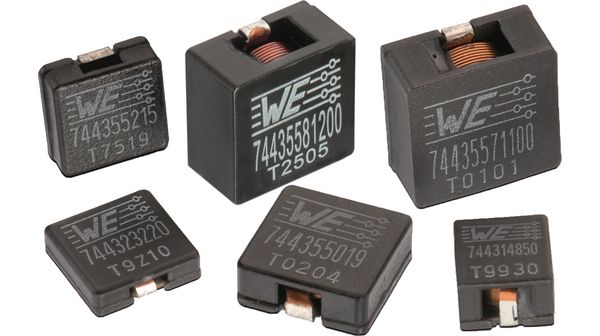

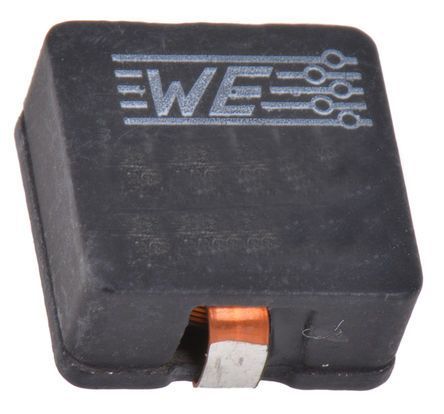

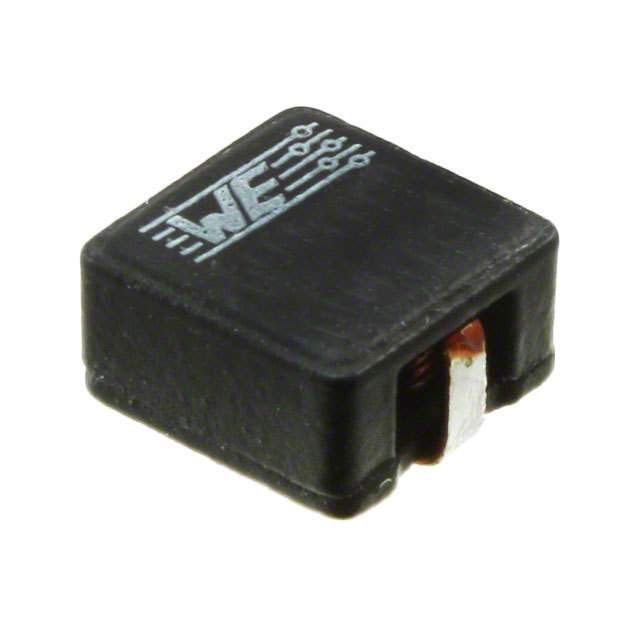

Product Images
