Surface mount shielded wirewound power choke with 1.8µH inductance and 20% tolerance, rated for 14A RMS and 22A saturation current. Features low DC resistance of 5.6mΩ at a test frequency of 100kHz. Operates across a wide temperature range of -40°C to 150°C and is AEC-Q200 qualified. Packaged in tape and reel for automated assembly.
Package1335
Current Rating14A
MountingSurface Mount
Inductance1.8uH
Quick Jump:
Technical Specifications
Wurth Electronics 744313180 technical specifications.
General
| Package/Case | 1335 |
| Current Rating | 14A |
| DC Resistance (DCR) | 5.6mR |
| Height | 3.3mm |
| Height - Seated (Max) | 0.138inch |
| Inductance | 1.8uH |
| Inductance Tolerance | 20% |
| Length | 0.504inch |
| Max DC Current | 14A |
| Max Operating Temperature | 150°C |
| Min Operating Temperature | -40°C |
| Mount | Surface Mount |
| Package Quantity | 1 |
| Packaging | Tape and Reel |
| Ratings | AEC-Q200 |
| Reach SVHC Compliant | Unknown |
| RMS Current (Irms) | 14A |
| RoHS Compliant | Yes |
| Saturation Current | 22A |
| Self Resonant Frequency | 48MHz |
| Series | WE-HCI |
| Shielding | Shielded |
| Termination | SMD/SMT |
| Test Frequency | 100kHz |
| Tolerance | 20% |
| Width | 12.8mm |
Compliance
| RoHS | Compliant |
Datasheet
Wurth Electronics 744313180 Datasheet
Download the complete datasheet for Wurth Electronics 744313180 to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

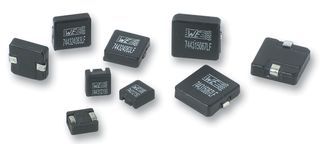

Product Images
