Shielded wirewound surface mount inductor with 16µH inductance and 20% tolerance, rated for 5A maximum DC current. Features a low DC resistance of 34.5mΩ at a test frequency of 100kHz, with a saturation current of 6.5A. Operates across a wide temperature range of -40°C to 150°C and is AEC-Q200 qualified. Packaged in tape and reel for automated assembly.
PackageNonstandard
Current Rating5A
MountingSurface Mount
Inductance16uH
Quick Jump:
Technical Specifications
Wurth Electronics 7443251600 technical specifications.
General
| Package/Case | Nonstandard |
| Current Rating | 5A |
| DC Resistance (DCR) | 34.5mR |
| Height | 4.7mm |
| Height - Seated (Max) | 0.197inch |
| Inductance | 16uH |
| Inductance Tolerance | 20% |
| Length | 0.413inch |
| Max DC Current | 5A |
| Max Operating Temperature | 150°C |
| Min Operating Temperature | -40°C |
| Mount | Surface Mount |
| Package Quantity | 1 |
| Packaging | Tape and Reel |
| Ratings | AEC-Q200 |
| Reach SVHC Compliant | Unknown |
| RMS Current (Irms) | 5A |
| RoHS Compliant | Yes |
| Saturation Current | 6.5A |
| Self Resonant Frequency | 18MHz |
| Series | WE-HCI |
| Series Resistance | 34.5R |
| Shielding | Shielded |
| Termination | SMD/SMT |
| Test Frequency | 100kHz |
| Tolerance | 20% |
| Width | 10.2mm |
Compliance
| RoHS | Compliant |
Datasheet
Wurth Electronics 7443251600 Datasheet
Download the complete datasheet for Wurth Electronics 7443251600 to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

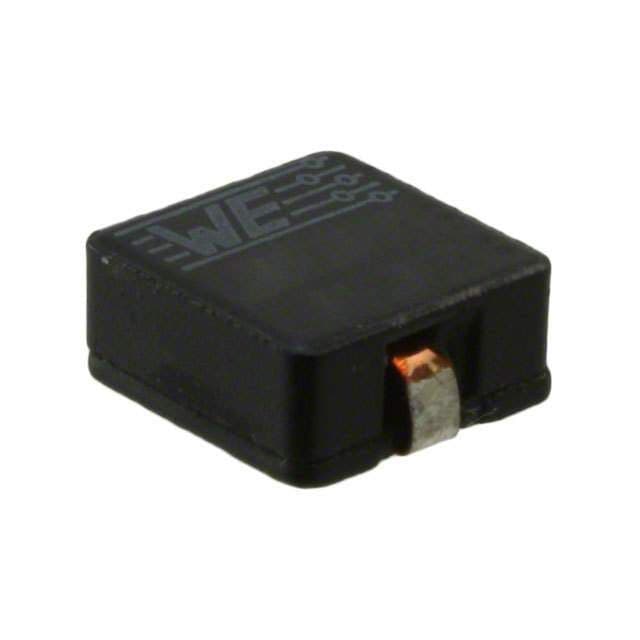

Product Images
