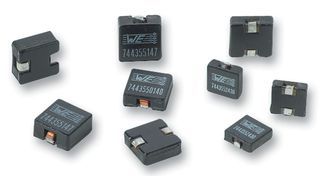

Surface mount fixed inductor featuring 2.3µH inductance with a 20% tolerance, tested at 100kHz. This shielded, wirewound power choke offers a high current rating of 17.5A (RMS and saturation) and a low DC resistance of 3.7mΩ. Operating across a wide temperature range of -40°C to 155°C, it is AEC-Q200 qualified and RoHS compliant. The component is supplied on tape and reel in a 1350 package.
Sign in to ask questions about the Wurth Electronics 7443550230 datasheet using AI. Get instant answers about specifications, features, and technical details, ideal for finding information in larger documents.
Sign In to ChatWidest selection of semiconductors and electronic components in stock and ready to ship ™
Wurth Electronics 7443550230 technical specifications.
| Package/Case | 1350 |
| Current Rating | 17.5A |
| DC Resistance (DCR) | 3.7mR |
| Depth | 12.8mm |
| Height | 4.7mm |
| Height - Seated (Max) | 0.197inch |
| Inductance | 2.3uH |
| Inductance Tolerance | 20% |
| Length | 13mm |
| Max DC Current | 17.5A |
| Max Operating Temperature | 155°C |
| Min Operating Temperature | -40°C |
| Mount | Surface Mount |
| Package Quantity | 1 |
| Packaging | Cut Tape |
| Ratings | AEC-Q200 |
| Reach SVHC Compliant | Unknown |
| RMS Current (Irms) | 17.5A |
| RoHS Compliant | Yes |
| Saturation Current | 17A |
| Self Resonant Frequency | 40MHz |
| Series | WE-HCI |
| Series Resistance | 3.7R |
| Shielding | Shielded |
| Termination | SMD/SMT |
| Test Frequency | 100kHz |
| Tolerance | 20% |
| Width | 12.8mm |
| RoHS | Compliant |
