Surface mount general purpose inductor with 22µH inductance and 20% tolerance. Features a 6A current rating, 24.7mΩ DC resistance, and 6.5A saturation current. Operates from -40°C to 155°C and is AEC-Q200 qualified. Shielded construction with SMD/SMT termination, packaged on tape and reel.
Package1365
Current Rating6A
MountingSurface Mount
Inductance22uH
Quick Jump:
Technical Specifications
Wurth Electronics 7443551221 technical specifications.
General
| Package/Case | 1365 |
| Current Rating | 6A |
| DC Resistance (DCR) | 24.7mR |
| Depth | 12.8mm |
| Height | 6.2mm |
| Height - Seated (Max) | 0.256inch |
| Inductance | 22uH |
| Inductance Tolerance | 20% |
| Length | 13.2mm |
| Max DC Current | 6A |
| Max Operating Temperature | 155°C |
| Min Operating Temperature | -40°C |
| Mount | Surface Mount |
| Package Quantity | 1 |
| Packaging | Tape and Reel |
| Ratings | AEC-Q200 |
| Reach SVHC Compliant | Unknown |
| RMS Current (Irms) | 6A |
| RoHS Compliant | Yes |
| Saturation Current | 6.5A |
| Self Resonant Frequency | 14MHz |
| Series | WE-HCI |
| Series Resistance | 24.7R |
| Shielding | Shielded |
| Termination | SMD/SMT |
| Test Frequency | 100kHz |
| Tolerance | 20% |
| Width | 12.8mm |
Compliance
| RoHS | Compliant |
Datasheet
Wurth Electronics 7443551221 Datasheet
Download the complete datasheet for Wurth Electronics 7443551221 to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

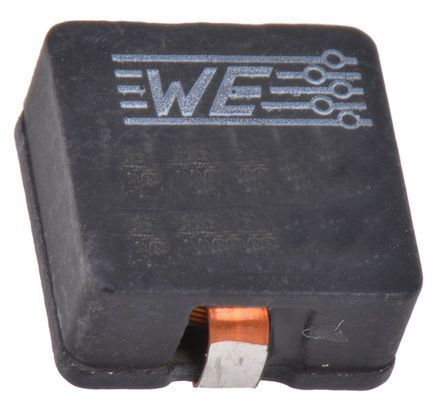

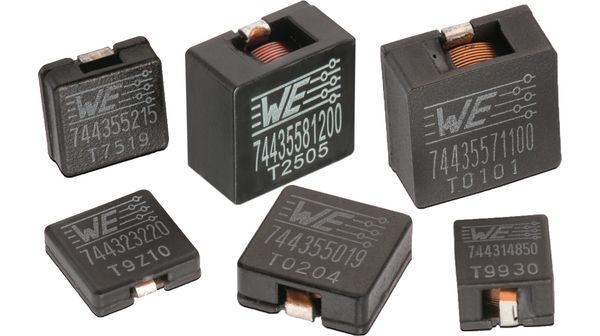

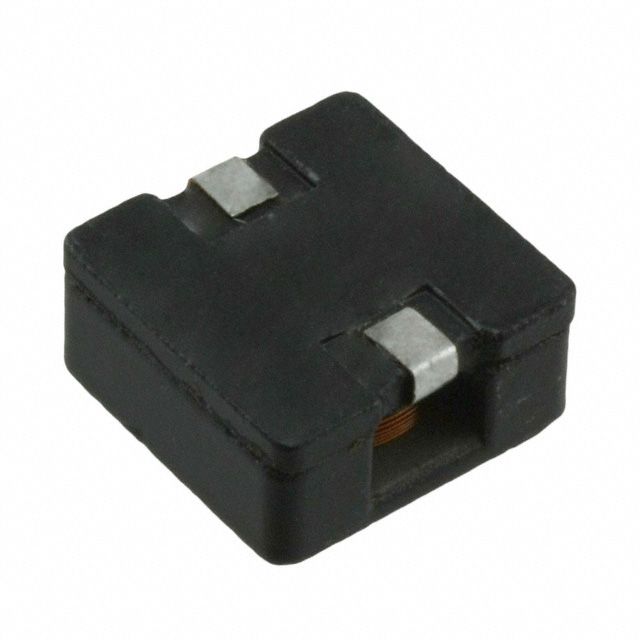

Product Images
