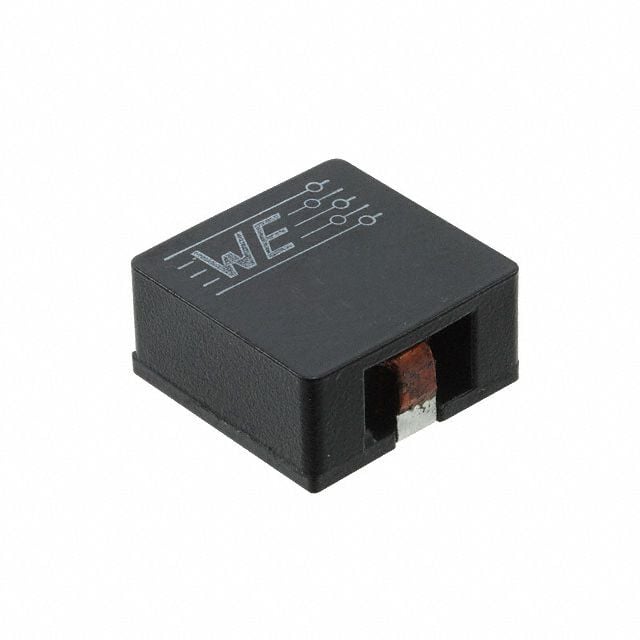

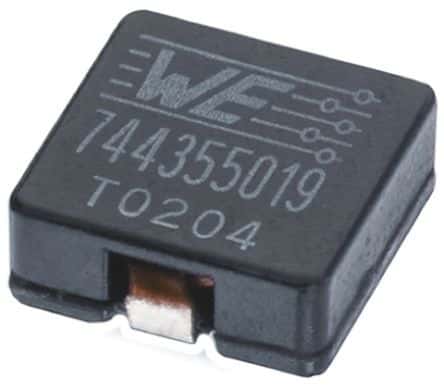

Surface mount fixed inductor featuring a shielded wirewound construction with a ferrite core. Offers 8.2µH inductance with a 20% tolerance, tested at 100kHz. Designed for automotive applications with AEC-Q200 qualification, it handles a maximum DC current of 25.5A and a saturation current of 30A. Features a low DC resistance of 2.7mΩ and operates within a temperature range of -40°C to 125°C. Packaged in a 2212 case size, it is supplied on tape and reel.
Package2212
Current Rating25.5A
MountingSurface Mount
Inductance8.2uH
Quick Jump:
Technical Specifications
Wurth Electronics 74435580820 technical specifications.
General
| Package/Case | 2212 |
| Core Material | Ferrite |
| Current Rating | 25.5A |
| DC Resistance (DCR) | 2.7mR |
| Depth | 22.5mm |
| Height | 12mm |
| Height - Seated (Max) | 0.488inch |
| Inductance | 8.2uH |
| Inductance Tolerance | 20% |
| Length | 22.5mm |
| Max DC Current | 25.5A |
| Max Operating Temperature | 125°C |
| Min Operating Temperature | -40°C |
| Mount | Surface Mount |
| Package Quantity | 1 |
| Packaging | Tape and Reel |
| Ratings | AEC-Q200 |
| Reach SVHC Compliant | Unknown |
| RMS Current (Irms) | 25.5A |
| Saturation Current | 30A |
| Self Resonant Frequency | 17MHz |
| Series | WE-HCI |
| Series Resistance | 2.7R |
| Shielding | Shielded |
| Termination | SMD/SMT |
| Test Frequency | 100kHz |
| Tolerance | 20% |
| Width | 22mm |
Compliance
| RoHS | Not Compliant |
Datasheet
Wurth Electronics 74435580820 Datasheet
Download the complete datasheet for Wurth Electronics 74435580820 to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.
