Surface mount fixed inductor with 12µH inductance and 20% tolerance, rated for 19A RMS and 25A saturation current. Features a ferrite core, shielded construction, and low 4.3mΩ DC resistance. Designed for automotive applications with AEC-Q200 qualification, operating from -40°C to 125°C. Packaged in a 2212 case size on tape and reel.
Package2212
Current Rating19A
MountingSurface Mount
Inductance12uH
Quick Jump:
Technical Specifications
Wurth Electronics 74435581200 technical specifications.
General
| Package/Case | 2212 |
| Core Material | Ferrite |
| Current Rating | 19A |
| DC Resistance (DCR) | 4.3mR |
| Depth | 22.5mm |
| Height | 12mm |
| Height - Seated (Max) | 0.488inch |
| Inductance | 12uH |
| Inductance Tolerance | 20% |
| Length | 22.5mm |
| Max DC Current | 19A |
| Max Operating Temperature | 125°C |
| Min Operating Temperature | -40°C |
| Mount | Surface Mount |
| Package Quantity | 1 |
| Packaging | Tape and Reel |
| Ratings | AEC-Q200 |
| Reach SVHC Compliant | Unknown |
| RMS Current (Irms) | 19A |
| RoHS Compliant | Yes |
| Saturation Current | 25A |
| Self Resonant Frequency | 13MHz |
| Series | WE-HCI |
| Series Resistance | 4.3R |
| Shielding | Shielded |
| Termination | SMD/SMT |
| Test Frequency | 100kHz |
| Tolerance | 20% |
| Width | 22mm |
Compliance
| RoHS | Compliant |
Datasheet
Wurth Electronics 74435581200 Datasheet
Download the complete datasheet for Wurth Electronics 74435581200 to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

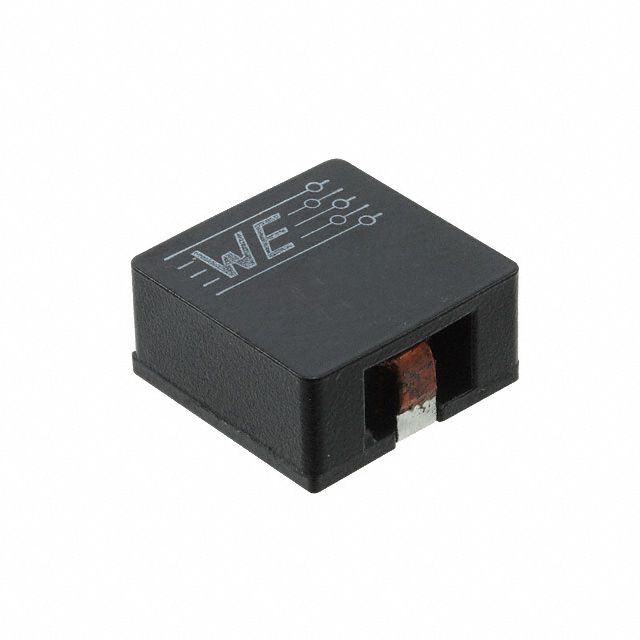

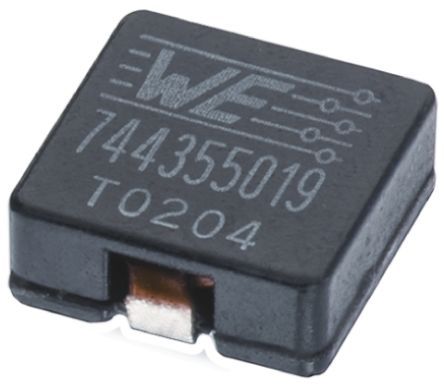

Product Images
