Surface mount fixed inductor featuring 33µH inductance with a 15% tolerance, designed for high current applications up to 30A. This shielded wirewound power choke utilizes a ferrite core and offers a low DC resistance of 2.4mΩ. Operating across a temperature range of -40°C to 125°C, it is suitable for demanding electronic circuits. The component is RoHS compliant and packaged in a tray.
PackageNonstandard
Current Rating30A
MountingSurface Mount
Inductance33uH
Quick Jump:
Technical Specifications
Wurth Electronics 7443643300 technical specifications.
General
| Package/Case | Nonstandard |
| Core Material | Ferrite |
| Current Rating | 30A |
| DC Resistance (DCR) | 2.4mR |
| Height | 18.5mm |
| Height - Seated (Max) | 0.728inch |
| Inductance | 33uH |
| Inductance Tolerance | 15% |
| Length | 1.122inch |
| Max DC Current | 30A |
| Max Operating Temperature | 125°C |
| Min Operating Temperature | -40°C |
| Mount | Surface Mount |
| Package Quantity | 30 |
| Packaging | Tray |
| Reach SVHC Compliant | Unknown |
| RMS Current (Irms) | 30A |
| RoHS Compliant | Yes |
| Saturation Current | 11.5A |
| Self Resonant Frequency | 7MHz |
| Series | WE-HCF |
| Shielding | Shielded |
| Termination | SMD/SMT |
| Test Frequency | 100kHz |
| Tolerance | 15% |
| Width | 19.5mm |
Compliance
| RoHS | Compliant |
Datasheet
Wurth Electronics 7443643300 Datasheet
Download the complete datasheet for Wurth Electronics 7443643300 to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

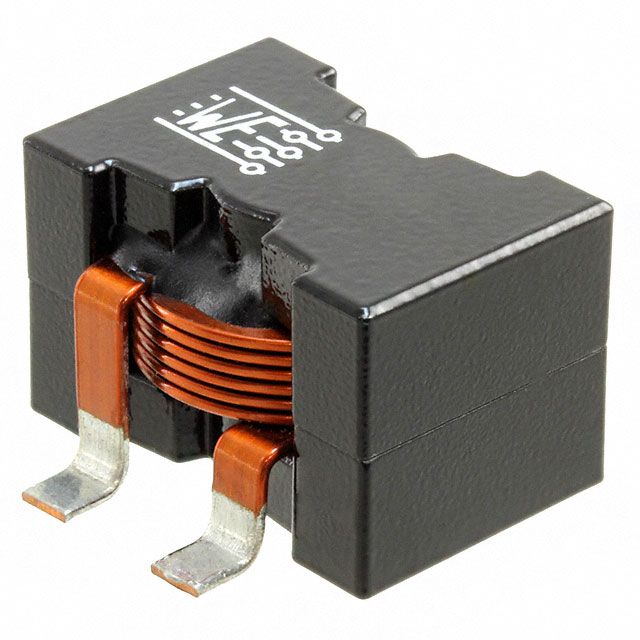

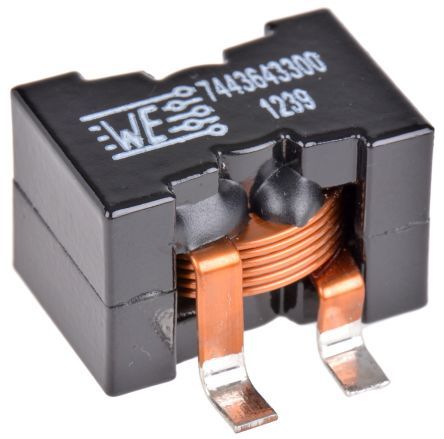

Product Images
