Shielded, wirewound, surface mount power inductor with 3.3µH inductance and 20% tolerance. Features a 5A current rating, 30mΩ DC resistance, and a powdered iron core. Operates across a wide temperature range of -40°C to 125°C. Self-resonant frequency is 27MHz. Packaged in tape and reel.
Frequency27MHz
PackageNonstandard
Current Rating5A
MountingSurface Mount
Quick Jump:
Technical Specifications
Wurth Electronics 74437346033 technical specifications.
General
| Package/Case | Nonstandard |
| Core Material | Ferrite, Composite |
| Current Rating | 5A |
| DC Resistance (DCR) | 30mR |
| Depth | 6.6mm |
| Frequency | 27MHz |
| Height | 2.8mm |
| Height - Seated (Max) | 0.122inch |
| Inductance | 3.3uH |
| Inductance Tolerance | 20% |
| Length | 7.3mm |
| Max DC Current | 5A |
| Max Operating Temperature | 125°C |
| Min Operating Temperature | -40°C |
| Mount | Surface Mount |
| Package Quantity | 1 |
| Packaging | Tape and Reel |
| Reach SVHC Compliant | Unknown |
| RMS Current (Irms) | 5A |
| RoHS Compliant | Yes |
| Saturation Current | 13.5A |
| Self Resonant Frequency | 27MHz |
| Series | WE-LHMI |
| Series Resistance | 30mR |
| Shielding | Shielded |
| Termination | SMD/SMT |
| Test Frequency | 100kHz |
| Tolerance | 20% |
| Width | 6.6mm |
Compliance
| RoHS | Compliant |
Datasheet
Wurth Electronics 74437346033 Datasheet
Download the complete datasheet for Wurth Electronics 74437346033 to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

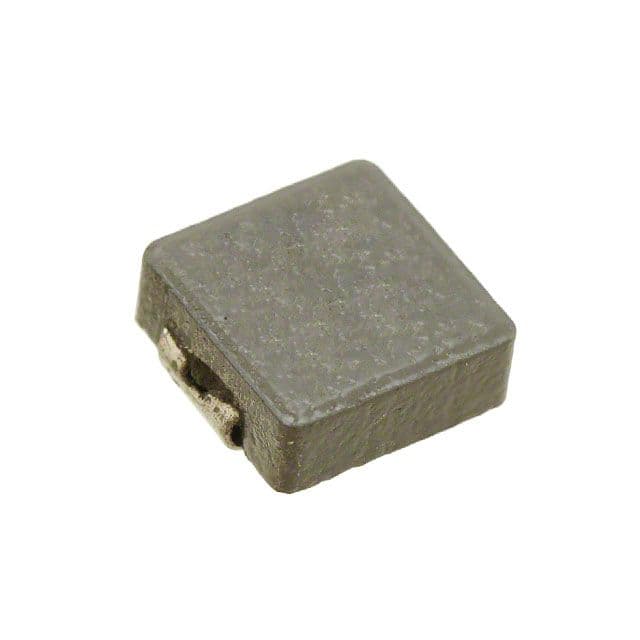

Product Images
