Surface mount fixed inductor with 22µH inductance and 20% tolerance. Features a shielded, wirewound construction with a powdered iron core. Rated for 600mA RMS current and 1.6A saturation current, with a DC resistance of 940mΩ. Operates across a temperature range of -40°C to 125°C. Housed in a 1212 (3030) SMD/SMT case, supplied on tape and reel.
PackageSMD/SMT
Current Rating600mA
MountingSurface Mount
Inductance22uH
Quick Jump:
Technical Specifications
Wurth Electronics 74438335220 technical specifications.
General
| Case Code (Imperial) | 1212 |
| Case Code (Metric) | 3030 |
| Package/Case | SMD/SMT |
| Core Material | Metal, Composite, Ferrite |
| Current Rating | 600mA |
| DC Resistance (DCR) | 940mR |
| Depth | 3mm |
| Height | 1.5mm |
| Height - Seated (Max) | 0.059inch |
| Inductance | 22uH |
| Inductance Tolerance | 20% |
| Length | 3mm |
| Max DC Current | 600mA |
| Max Operating Temperature | 125°C |
| Min Operating Temperature | -40°C |
| Mount | Surface Mount |
| Package Quantity | 1 |
| Packaging | Tape and Reel |
| Reach SVHC Compliant | Unknown |
| RMS Current (Irms) | 600mA |
| RoHS Compliant | Yes |
| Saturation Current | 1.6A |
| Self Resonant Frequency | 12MHz |
| Series | WE-MAPI |
| Series Resistance | 940mR |
| Shielding | Shielded |
| Termination | SMD/SMT |
| Test Frequency | 100kHz |
| Tolerance | 20% |
| Width | 3mm |
Compliance
| RoHS | Compliant |
Datasheet
Wurth Electronics 74438335220 Datasheet
Download the complete datasheet for Wurth Electronics 74438335220 to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

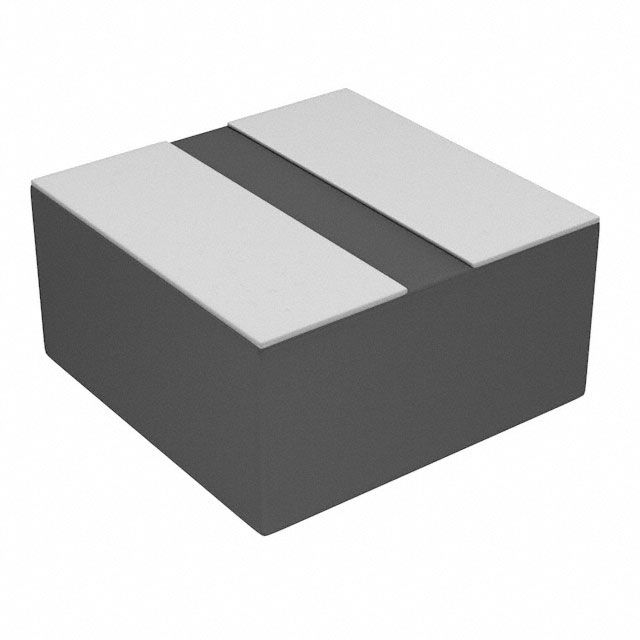

Product Images
