Wurth Electronics
7446120039
General Purpose Inductor, 39000uH, 30%, 1 Element, RADIAL LEADED, ROHS AND REACH COMPLIANT
PackageSMD/SMT
Current Rating400mA
MountingThrough Hole
Inductance39mH
Quick Jump:
Technical Specifications
Wurth Electronics 7446120039 technical specifications.
General
| Package/Case | SMD/SMT |
| Current Rating | 400mA |
| Depth | 13.5mm |
| Height | 20.5mm |
| Inductance | 39mH |
| Inductance Tolerance | 30% |
| Length | 18.5mm |
| Max Current Rating | 400mA |
| Max DC Current | 400mA |
| Max Operating Temperature | 125°C |
| Min Operating Temperature | -40°C |
| Mount | Through Hole |
| Number of Lines | 2 |
| Package Quantity | 100 |
| Packaging | Tray |
| Reach SVHC Compliant | No |
| RoHS Compliant | Yes |
| Series | WE-LF |
| Termination | Radial |
| Test Frequency | 50Hz |
| Tolerance | 30% |
| Voltage Rating (AC) | 250V |
| Width | 13.5mm |
Compliance
| RoHS | Compliant |
Datasheet
Wurth Electronics 7446120039 Datasheet
Download the complete datasheet for Wurth Electronics 7446120039 to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

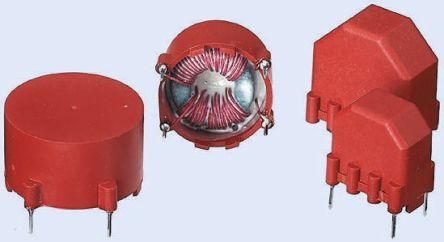

Product Images
