PackageSMD/SMT
Current3A
MountingSurface Mount
Inductance1mH
Quick Jump:
Technical Specifications
Wurth Electronics 7446632001 technical specifications.
General
| Package/Case | SMD/SMT |
| Current | 3A |
| DC Resistance (DCR) | 60mR |
| Depth | 23.3mm |
| Height | 0.453inch |
| Inductance | 1mH |
| Length | 0.917inch |
| Max Current Rating | 3A |
| Max DC Current | 2A |
| Max Operating Temperature | 125°C |
| Min Operating Temperature | -40°C |
| Mount | Surface Mount |
| Number of Lines | 2 |
| Package Quantity | 1 |
| Packaging | Cut Tape |
| RoHS Compliant | Yes |
| Series | WE-LF |
| Tolerance | 30% |
| Voltage Rating (AC) | 250V |
| Width | 0.728inch |
Compliance
| RoHS | Compliant |
Datasheet
Wurth Electronics 7446632001 Datasheet
Download the complete datasheet for Wurth Electronics 7446632001 to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

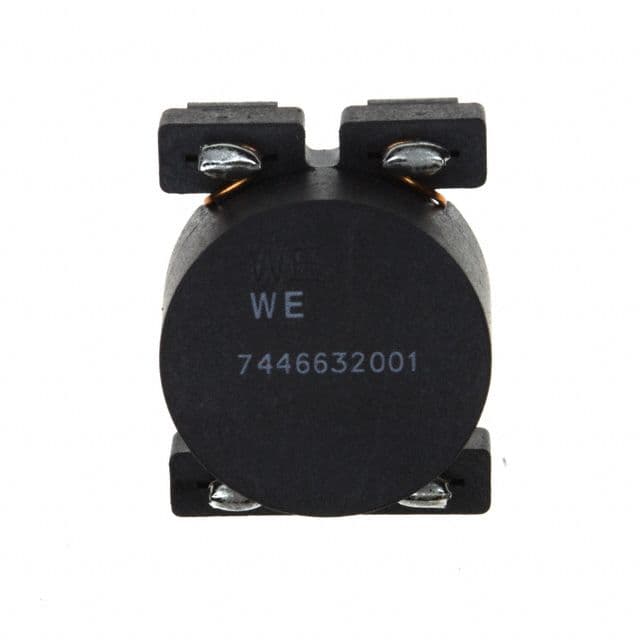

Product Images
