Surface mount shielded wirewound power inductor with 47µH inductance and 20% tolerance. Features a ferrite core, 2.7A current rating, and 100mΩ DC resistance. Operates from -40°C to 125°C, with a saturation current of 3A and a self-resonant frequency of 7.9MHz. Packaged in tape and reel for automated assembly.
PackageNonstandard
Storage8mm
Resistance100mR
Current Rating2.7A
Quick Jump:
Technical Specifications
Wurth Electronics 744770147 technical specifications.
General
| Package/Case | Nonstandard |
| Core Material | Ferrite |
| Current Rating | 2.7A |
| DC Resistance (DCR) | 100mR |
| Depth | 12mm |
| Height | 8mm |
| Height - Seated (Max) | 0.315inch |
| Inductance | 47uH |
| Inductance Tolerance | 20% |
| Inductor Type | POWER |
| Lead Free | Lead Free |
| Lead Pitch | 7mm |
| Length | 12mm |
| Max DC Current | 2.7A |
| Max Operating Temperature | 125°C |
| Min Operating Temperature | -40°C |
| Mount | Surface Mount |
| Package Quantity | 500 |
| Packaging | Tape and Reel |
| Reach SVHC Compliant | Unknown |
| Resistance | 100mR |
| RMS Current (Irms) | 2.7A |
| RoHS Compliant | Yes |
| Saturation Current | 3A |
| Self Resonant Frequency | 7.9MHz |
| Series | WE-PD |
| Series Resistance | 100mR |
| Shielding | Shielded |
| Size | 8mm |
| Termination | SMD/SMT |
| Test Frequency | 1kHz |
| Tolerance | 20% |
| Width | 12mm |
Compliance
| RoHS | Compliant |
Datasheet
Wurth Electronics 744770147 Datasheet
Download the complete datasheet for Wurth Electronics 744770147 to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

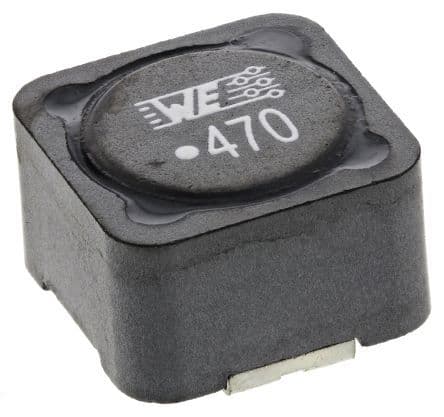

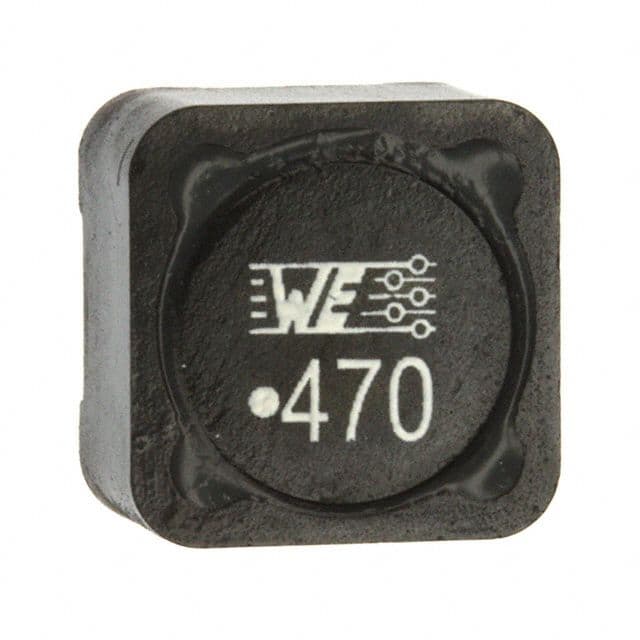

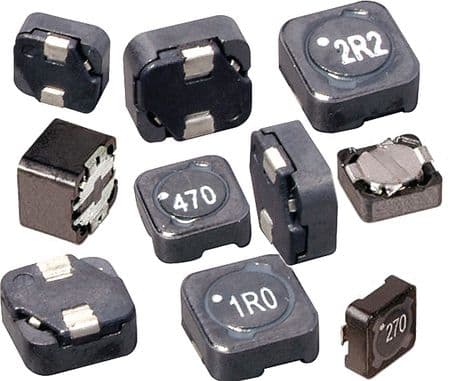

Product Images
