Surface mount shielded wirewound power inductor with 10µH inductance and 20% tolerance, rated for 7.1A RMS current. Features a ferrite core, 21mΩ DC resistance, and a saturation current of 10.5A. Operating temperature range is -40°C to 125°C. This component is AEC-Q200 qualified and RoHS compliant.
PackageNonstandard
Storage10mm
Resistance21mR
Current Rating7.1A
Quick Jump:
Technical Specifications
Wurth Electronics 7447709100 technical specifications.
General
Case Code (Imperial)
1210
Case Code (Metric)
3225
Package/Case
Nonstandard
Core Material
Ferrite
Current Rating
7.1A
DC Resistance (DCR)
21mR
Depth
12mm
Height
10mm
Height - Seated (Max)
0.394inch
Inductance
10uH
Inductance Tolerance
20%
Inductor Type
POWER
Lead Free
Lead Free
Lead Pitch
7mm
Length
12mm
Max DC Current
7.1A
Max Operating Temperature
125°C
Min Operating Temperature
-40°C
Mount
Surface Mount
Package Quantity
1
Packaging
Cut Tape
Ratings
AEC-Q200
Reach SVHC Compliant
Unknown
Resistance
21mR
RMS Current (Irms)
7.1A
RoHS Compliant
Yes
Saturation Current
10.5A
Self Resonant Frequency
21MHz
Series
WE-PD
Series Resistance
21mR
Shielding
Shielded
Size
10mm
Termination
SMD/SMT
Test Frequency
1kHz
Tolerance
20%
Width
12mm
Compliance
RoHS
Compliant
Datasheet
Wurth Electronics 7447709100 Datasheet
Download the complete datasheet for Wurth Electronics 7447709100 to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

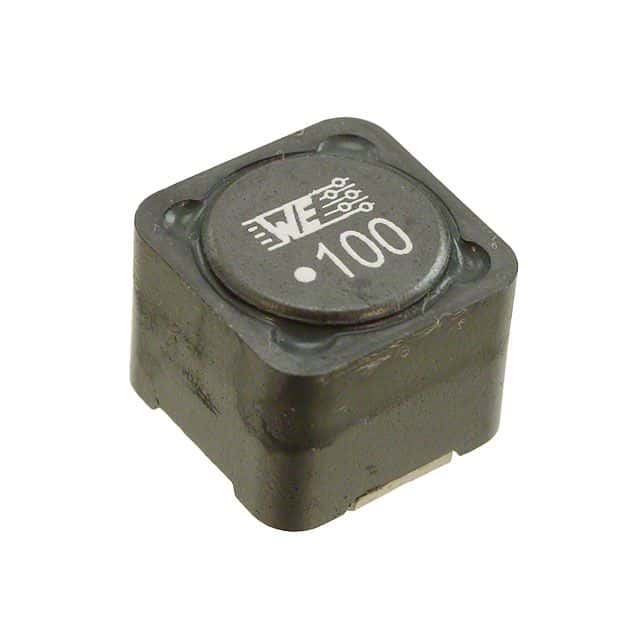

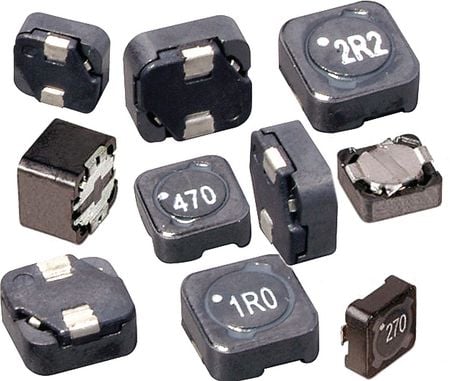

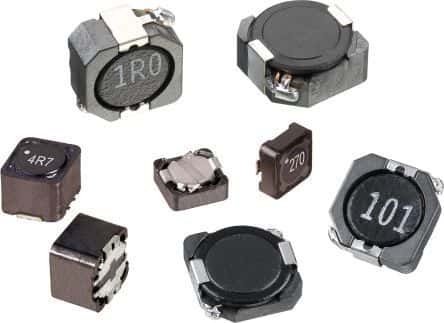

Product Images
