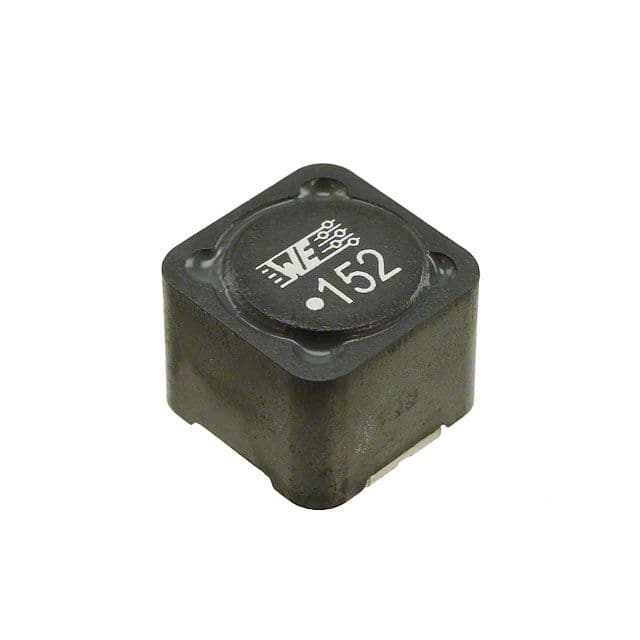

Shielded wirewound power inductor with 1.5mH inductance and 20% tolerance, designed for surface mount applications. Features a ferrite core, 800mA saturation current, and 650mA RMS current rating. Operates within a -40°C to 125°C temperature range, with a low DC resistance of 2.3 Ohms. AEC-Q200 qualified and RoHS compliant.
PackageNonstandard
Resistance2.3R
Current Rating650mA
MountingSurface Mount
Quick Jump:
Technical Specifications
Wurth Electronics 7447709152 technical specifications.
General
Case Code (Imperial)
1210
Case Code (Metric)
3225
Package/Case
Nonstandard
Core Material
Ferrite
Current Rating
650mA
DC Resistance (DCR)
2.3R
Depth
12mm
Height
10mm
Height - Seated (Max)
0.394inch
Inductance
1.5mH
Inductance Tolerance
20%
Inductor Type
POWER
Lead Pitch
7mm
Length
12mm
Max DC Current
900mA
Max Operating Temperature
125°C
Min Operating Temperature
-40°C
Mount
Surface Mount
Package Quantity
1
Packaging
Cut Tape
Ratings
AEC-Q200
Reach SVHC Compliant
Unknown
Resistance
2.3R
RMS Current (Irms)
650mA
RoHS Compliant
Yes
Saturation Current
800mA
Self Resonant Frequency
900kHz
Series
WE-PD
Series Resistance
2.3R
Shielding
Shielded
Termination
SMD/SMT
Test Frequency
1kHz
Tolerance
20%
Width
12mm
Compliance
RoHS
Compliant
Datasheet
Wurth Electronics 7447709152 Datasheet
Download the complete datasheet for Wurth Electronics 7447709152 to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.
