Surface mount fixed inductor featuring a ferrite core for power applications. This shielded wirewound component offers 100µH inductance with a 20% tolerance, rated for 1.5A RMS current. It exhibits a DC resistance of 198mΩ and a saturation current of 1.8A. Designed for automotive environments, it meets AEC-Q200 standards and operates from -40°C to 125°C.
PackageNonstandard
Resistance198mR
Current Rating1.5A
MountingSurface Mount
Quick Jump:
Technical Specifications
Wurth Electronics 7447714101 technical specifications.
General
| Package/Case | Nonstandard |
| Core Material | Ferrite |
| Current Rating | 1.5A |
| DC Resistance (DCR) | 198mR |
| Depth | 10mm |
| Height | 5mm |
| Height - Seated (Max) | 0.197inch |
| Inductance | 100uH |
| Inductance Tolerance | 20% |
| Length | 10mm |
| Max DC Current | 1.5A |
| Max Operating Temperature | 125°C |
| Min Operating Temperature | -40°C |
| Mount | Surface Mount |
| Package Quantity | 1 |
| Packaging | Tape and Reel |
| Ratings | AEC-Q200 |
| Reach SVHC Compliant | Unknown |
| Resistance | 198mR |
| RMS Current (Irms) | 1.5A |
| RoHS Compliant | Yes |
| Saturation Current | 1.8A |
| Self Resonant Frequency | 5.9MHz |
| Series | WE-PD |
| Series Resistance | 198mR |
| Shielding | Shielded |
| Termination | SMD/SMT |
| Test Frequency | 100kHz |
| Tolerance | 20% |
| Width | 10mm |
Compliance
| RoHS | Compliant |
Datasheet
Wurth Electronics 7447714101 Datasheet
Download the complete datasheet for Wurth Electronics 7447714101 to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

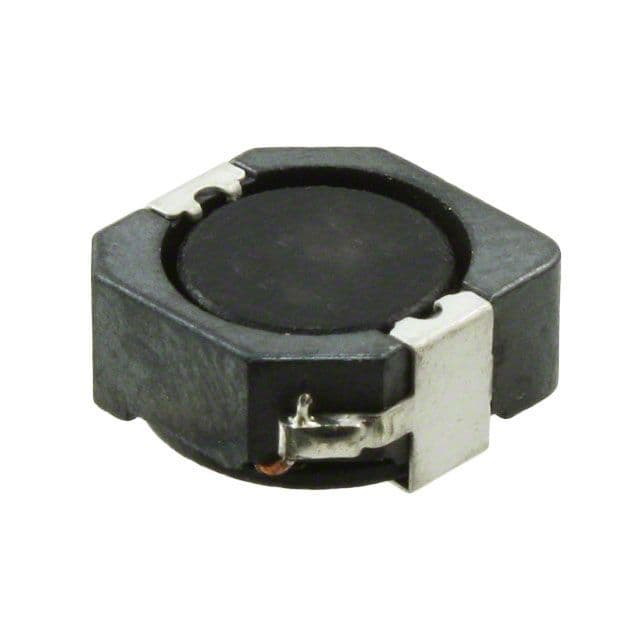

Product Images
