Surface mount fixed inductor featuring a ferrite core, offering 3mH inductance with a 10% tolerance at 1kHz. This unshielded wirewound power choke is rated for 350mA RMS and saturation current, with a low 7 Ohm DC resistance. Operating across a -40°C to 125°C temperature range, it is supplied in tape and reel packaging.
PackageNonstandard
Current Rating350mA
MountingSurface Mount
Inductance3mH
Quick Jump:
Technical Specifications
Wurth Electronics 744776333 technical specifications.
General
| Package/Case | Nonstandard |
| Core Material | Ferrite |
| Current Rating | 350mA |
| DC Resistance (DCR) | 7R |
| Height | 6.5mm |
| Height - Seated (Max) | 0.272inch |
| Inductance | 3mH |
| Inductance Tolerance | 10% |
| Lead Pitch | 2.5mm |
| Length | 0.402inch |
| Max DC Current | 350mA |
| Max Operating Temperature | 125°C |
| Min Operating Temperature | -40°C |
| Mount | Surface Mount |
| Package Quantity | 1 |
| Packaging | Tape and Reel |
| Reach SVHC Compliant | No |
| RMS Current (Irms) | 350mA |
| RoHS Compliant | Yes |
| Saturation Current | 400mA |
| Self Resonant Frequency | 900kHz |
| Series | WE-ASI |
| Shielding | Unshielded |
| Termination | SMD/SMT |
| Test Frequency | 1kHz |
| Tolerance | 10% |
| Width | 9mm |
Compliance
| RoHS | Compliant |
Datasheet
Wurth Electronics 744776333 Datasheet
Download the complete datasheet for Wurth Electronics 744776333 to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

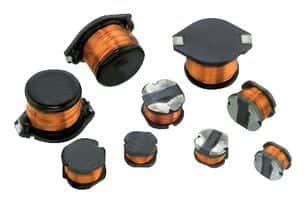

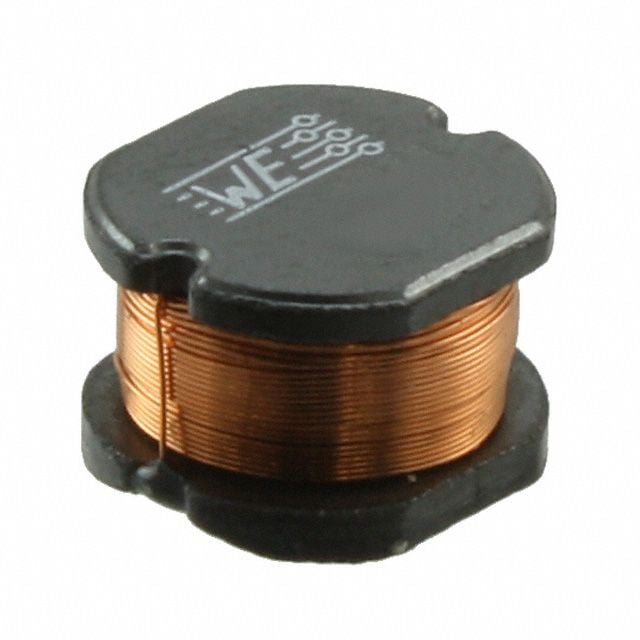

Product Images
