Surface mount shielded wirewound power choke with 6.8µH inductance and 20% tolerance. Features a ferrite core, 2.91A current rating, and 35mΩ DC resistance. Operates across a -40°C to 125°C temperature range and is AEC-Q200 qualified. Dimensions are 7.3mm depth, 7.3mm height, and 7.3mm width.
PackageNonstandard
Resistance35mR
Current Rating2.91A
MountingSurface Mount
Quick Jump:
Technical Specifications
Wurth Electronics 7447779006 technical specifications.
General
| Package/Case | Nonstandard |
| Core Material | Ferrite |
| Current Rating | 2.91A |
| DC Resistance (DCR) | 35mR |
| Depth | 7.3mm |
| Height | 0.177inch |
| Inductance | 6.8uH |
| Inductance Tolerance | 20% |
| Inductor Type | POWER |
| Length | 0.287inch |
| Max DC Current | 2.91A |
| Max Operating Temperature | 125°C |
| Min Operating Temperature | -40°C |
| Mount | Surface Mount |
| Package Quantity | 1 |
| Packaging | Cut Tape |
| Ratings | AEC-Q200 |
| Reach SVHC Compliant | Unknown |
| Resistance | 35mR |
| RMS Current (Irms) | 2.91A |
| RoHS Compliant | Yes |
| Saturation Current | 3.3A |
| Self Resonant Frequency | 30MHz |
| Series | WE-PD |
| Series Resistance | 35mR |
| Shielding | Shielded |
| Test Frequency | 1kHz |
| Tolerance | 20% |
| Width | 0.287inch |
Compliance
| RoHS | Compliant |
Datasheet
Wurth Electronics 7447779006 Datasheet
Download the complete datasheet for Wurth Electronics 7447779006 to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

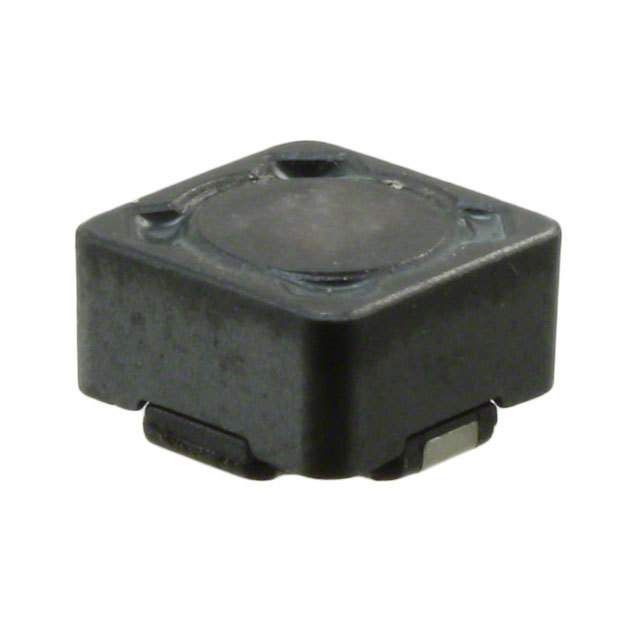

Product Images
