Surface mount shielded wirewound power inductor with 4.7µH inductance and 20% tolerance. Features a ferrite core, 2.9A current rating, and 35mΩ DC resistance. Operates from -40°C to 125°C and is AEC-Q200 qualified. Dimensions are 7.3mm x 7.3mm x 3.2mm.
PackageNonstandard
Resistance35mR
Current Rating2.9A
MountingSurface Mount
Quick Jump:
Technical Specifications
Wurth Electronics 7447789004 technical specifications.
General
Package/Case
Nonstandard
Core Material
Ferrite
Current Rating
2.9A
DC Current
2.9A
DC Resistance (DCR)
35mR
Depth
7.6mm
Height
3.2mm
Height - Seated (Max)
0.138inch
Inductance
4.7uH
Inductance Tolerance
20%
Inductor Type
POWER
Lead Free
Lead Free
Length
7.3mm
Max DC Current
2.9A
Max Operating Temperature
125°C
Military Standard
Not
Min Operating Temperature
-40°C
Mount
Surface Mount
Package Quantity
1
Packaging
Tape and Reel
Ratings
AEC-Q200
Reach SVHC Compliant
Unknown
Resistance
35mR
RMS Current (Irms)
2.9A
RoHS Compliant
Yes
Saturation Current
3.9A
Self Resonant Frequency
30MHz
Series
WE-PD
Series Resistance
35mR
Shielding
Shielded
Termination
SMD/SMT
Test Frequency
1kHz
Tolerance
20%
Width
7.3mm
Compliance
RoHS
Compliant
Datasheet
Wurth Electronics 7447789004 Datasheet
Download the complete datasheet for Wurth Electronics 7447789004 to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

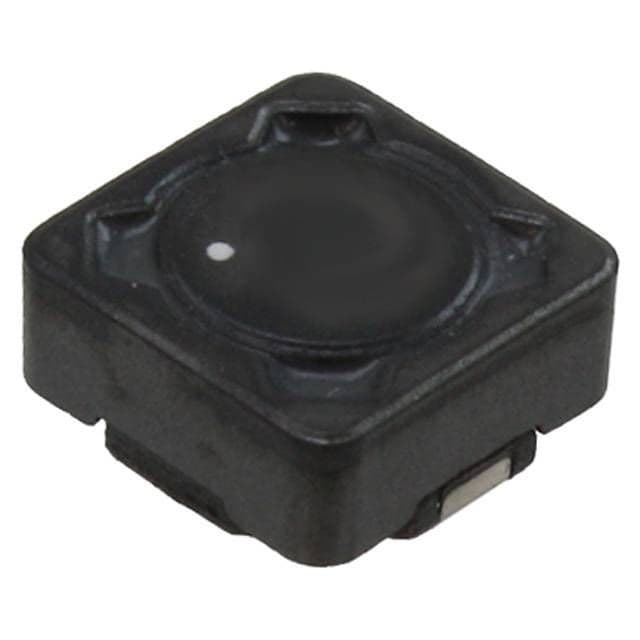

Product Images
