Through-hole radial data line filter featuring 2 functions, 10A max DC current, and 1mH inductance with a 30% tolerance. This component offers a low DC resistance of 7mR and operates within a temperature range of -40°C to 125°C. Designed for data line applications, it is RoHS compliant and packaged in bulk.
PackageL
Current10A
Resistance7MR
Current Rating10A
Quick Jump:
Technical Specifications
Wurth Electronics 744824101 technical specifications.
General
| Package/Case | L |
| Current | 10A |
| Current Rating | 10A |
| DC Resistance (DCR) | 7mR |
| Depth | 18.5mm |
| Height | 33mm |
| Inductance | 1mH |
| Inductance Tolerance | 30% |
| Lead Free | Lead Free |
| Lead Pitch | 10mm |
| Length | 27.5mm |
| Max DC Current | 10A |
| Max Operating Temperature | 125°C |
| Min Operating Temperature | -40°C |
| Mount | Through Hole, Radial |
| Number of Lines | 2 |
| Package Quantity | 200 |
| Packaging | Bulk |
| Reach SVHC Compliant | No |
| Resistance | 7MR |
| RoHS Compliant | Yes |
| Series | WE-CMB |
| Series Resistance | 7mR |
| Termination | Radial |
| Test Frequency | 10kHz |
| Tolerance | 30% |
| Width | 18.5mm |
Compliance
| RoHS | Compliant |
Datasheet
Wurth Electronics 744824101 Datasheet
Download the complete datasheet for Wurth Electronics 744824101 to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

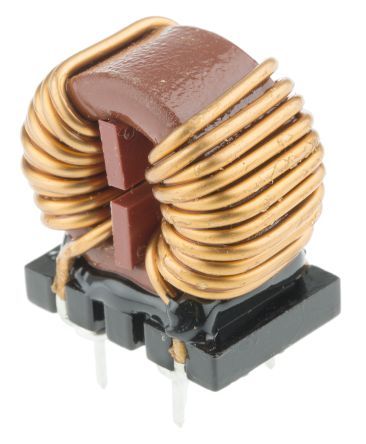

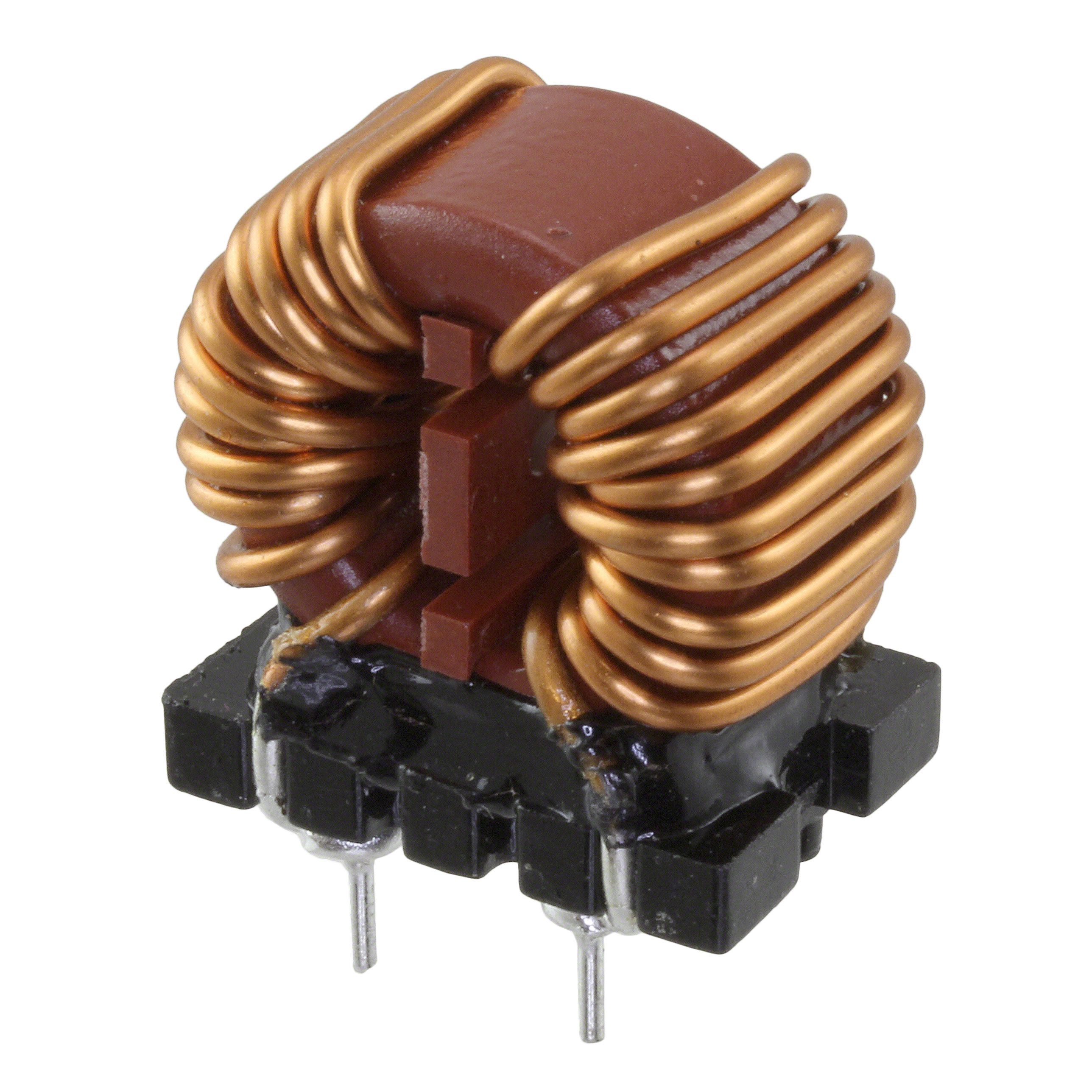

Product Images
