Radial EMI/RFI data line filter featuring two functions, a 250V AC voltage rating, and a 12A current rating. This through-hole component offers 1mH inductance with a 30% tolerance, a series resistance of 9mR, and operates within a temperature range of -40°C to 125°C. Designed for radial mounting with a 25mm lead pitch, it is RoHS compliant.
PackageRadial
Resistance9MR
Current Rating12A
MountingThrough Hole, Radial
Quick Jump:
Technical Specifications
Wurth Electronics 7448251201 technical specifications.
General
| Package/Case | Radial |
| Current Rating | 12A |
| Depth | 22mm |
| Height | 35mm |
| Inductance | 1mH |
| Inductance Tolerance | 30% |
| Lead Free | Lead Free |
| Lead Pitch | 25mm |
| Length | 30mm |
| Max Current Rating | 12A |
| Max DC Current | 12A |
| Max Operating Temperature | 125°C |
| Min Operating Temperature | -40°C |
| Mount | Through Hole, Radial |
| Number of Lines | 2 |
| Package Quantity | 175 |
| Packaging | Bulk |
| Reach SVHC Compliant | No |
| Resistance | 9MR |
| RoHS Compliant | Yes |
| Series | WE-CMB |
| Series Resistance | 9mR |
| Termination | Radial |
| Test Frequency | 10kHz |
| Tolerance | 30% |
| Voltage Rating (AC) | 250V |
| Width | 22mm |
Compliance
| RoHS | Compliant |
Datasheet
Wurth Electronics 7448251201 Datasheet
Download the complete datasheet for Wurth Electronics 7448251201 to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

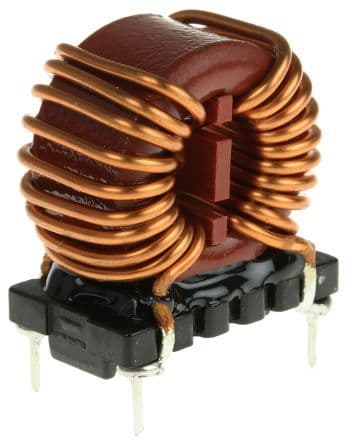

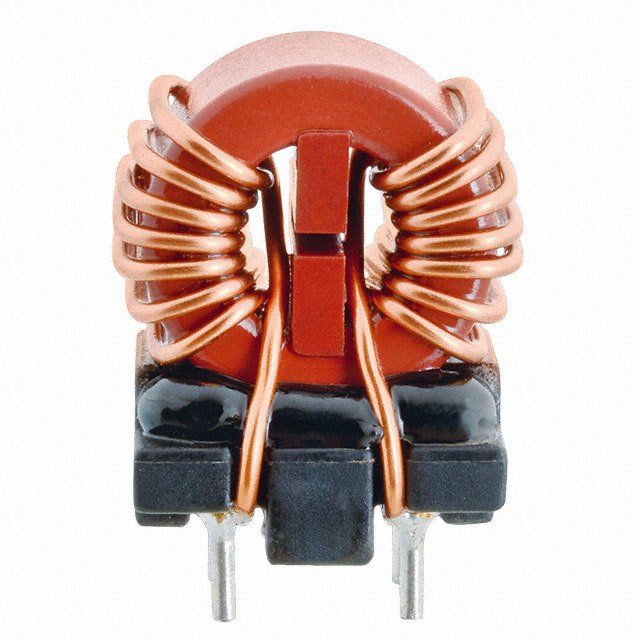

Product Images
