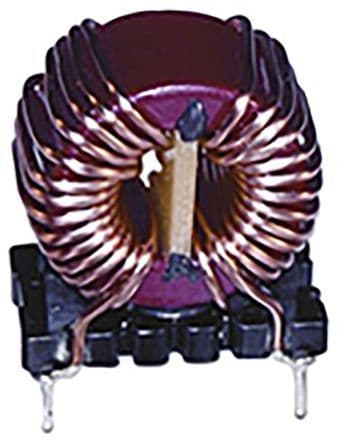

Radial data line filter featuring 2 functions, 250V AC voltage rating, and a 6A current rating. This component offers 3.3mH inductance with a 30% tolerance and a low series resistance of 25mR. Designed for through-hole mounting, it operates within a temperature range of -40°C to 125°C. The filter is RoHS compliant and packaged in bulk.
Checking distributor stock and pricing after the page loads.
Sign in to ask questions about the Wurth Electronics 7448256033 datasheet using AI. Get instant answers about specifications, features, and technical details, ideal for finding information in larger documents.
Sign In to ChatWidest selection of semiconductors and electronic components in stock and ready to ship ™
| Package/Case | Radial |
| Current Rating | 6A |
| Depth | 21mm |
| Height | 35mm |
| Inductance | 3.3mH |
| Inductance Tolerance | 30% |
| Lead Free | Lead Free |
| Lead Pitch | 25mm |
| Length | 30mm |
| Max Current Rating | 6A |
| Max DC Current | 6A |
| Max Operating Temperature | 125°C |
| Min Operating Temperature | -40°C |
| Mount | Through Hole, Radial |
| Number of Lines | 2 |
| Package Quantity | 175 |
| Packaging | Bulk |
| Reach SVHC Compliant | No |
| Resistance | 25MR |
| RoHS Compliant | Yes |
| Series | WE-CMB |
| Series Resistance | 25mR |
| Termination | Radial |
| Test Frequency | 10kHz |
| Tolerance | 30% |
| Voltage Rating (AC) | 250V |
| Width | 21mm |
| RoHS | Compliant |
