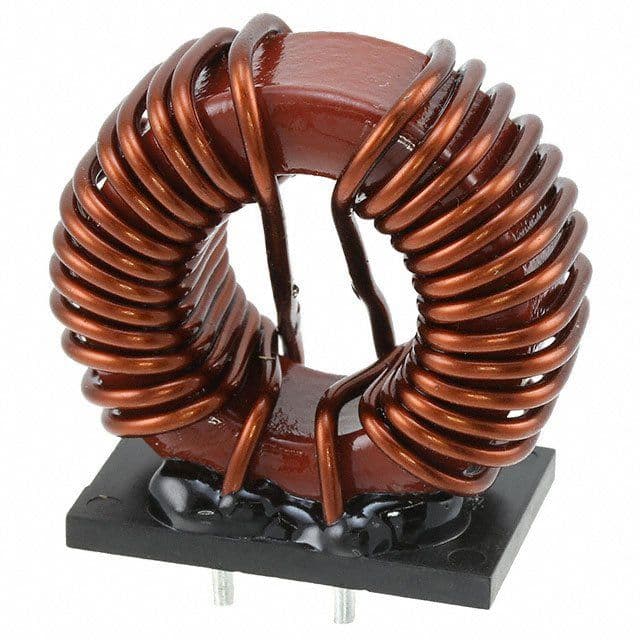

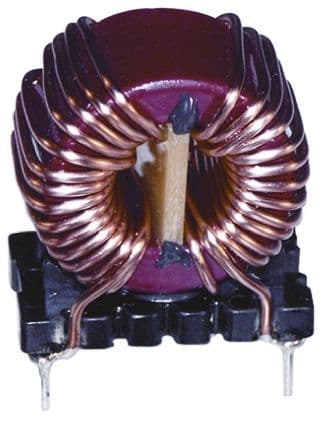

Radial data line filter featuring 2 functions, 250V voltage rating, and 20A current handling. This through-hole component utilizes a ferrite core for EMI/RFI suppression, offering 1.3mH inductance with a 30% tolerance. It boasts a low 6.2mR DC resistance and operates across a wide temperature range of -40°C to 125°C.
Checking distributor stock and pricing after the page loads.
Sign in to ask questions about the Wurth Electronics 7448262013 datasheet using AI. Get instant answers about specifications, features, and technical details, ideal for finding information in larger documents.
Sign In to ChatWidest selection of semiconductors and electronic components in stock and ready to ship ™
| Package/Case | Radial |
| Core Material | Ferrite |
| Current | 20A |
| Current Rating | 20A |
| DC Resistance (DCR) | 6.2mR |
| Depth | 23.5mm |
| Height | 43mm |
| Inductance | 1.3mH |
| Inductance Tolerance | 30% |
| Lead Diameter | 1.8mm |
| Lead Pitch | 10mm |
| Length | 1.713inch |
| Max DC Current | 20A |
| Max Operating Temperature | 125°C |
| Min Operating Temperature | -40°C |
| Mount | Through Hole, Radial |
| Number of Lines | 2 |
| Package Quantity | 30 |
| Packaging | Tray |
| Reach SVHC Compliant | No |
| Resistance | 6.2MR |
| RoHS Compliant | Yes |
| Self Resonant Frequency | 10kHz |
| Series | WE-CMB |
| Series Resistance | 4.7mR |
| Termination | Radial |
| Test Frequency | 50Hz |
| Tolerance | 30% |
| Width | 23.5mm |
| RoHS | Compliant |
