Surface mount shielded wirewound power choke with 4.7µH inductance and 20% tolerance. Features a ferrite core, 3.6A current rating, and 30mΩ DC resistance. Operates from -40°C to 125°C with 80V DC rated voltage. Dimensions are 12.5mm x 12.5mm x 8.5mm. Packaged in tape and reel.
PackageNonstandard
Current3.6A
MountingSurface Mount
Inductance4.7H
Quick Jump:
Technical Specifications
Wurth Electronics 744870004 technical specifications.
General
| Package/Case | Nonstandard |
| Core Material | Ferrite |
| Current | 3.6A |
| DC Resistance (DCR) | 30mR |
| DC Resistance (DCR) - Parallel | 30mR |
| Depth | 12.5mm |
| Height | 8.5mm |
| Inductance | 4.7H |
| Inductance - Parallel | 4.7uH |
| Inductance - Series | 18.8uH |
| Inductance Tolerance | 20% |
| Length | 12.5mm |
| Max DC Current | 3.6A |
| Max Operating Temperature | 125°C |
| Min Operating Temperature | -40°C |
| Mount | Surface Mount |
| Number of Coils | 2 |
| Package Quantity | 1 |
| Packaging | Tape and Reel |
| Reach SVHC Compliant | Unknown |
| RMS Current (Irms) | 3.6A |
| RoHS Compliant | Yes |
| Self Resonant Frequency | 34MHz |
| Series | WE-DD |
| Shielding | Shielded |
| Termination | SMD/SMT |
| Tolerance | 20% |
| DC Rated Voltage | 80V |
| Width | 12.5mm |
Compliance
| RoHS | Compliant |
Datasheet
Wurth Electronics 744870004 Datasheet
Download the complete datasheet for Wurth Electronics 744870004 to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

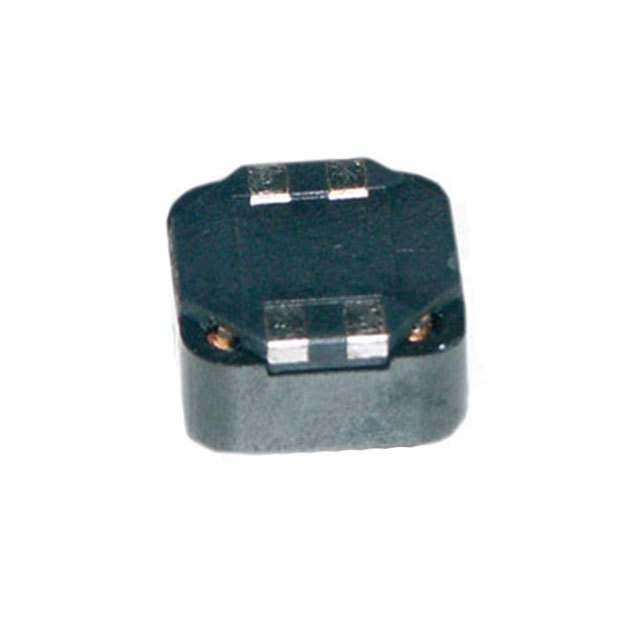

Product Images
