Wurth Electronics
744901012
Inductor RF Chip Thin Film 0.0012uH 0.1nH 500MHz 13Q-Factor Alumina 0.7A 0.1Ohm DCR 0402 T/R
Package0402
Current Rating700mA
MountingSurface Mount
Inductance1.2nH
Quick Jump:
Technical Specifications
Wurth Electronics 744901012 technical specifications.
General
| Case Code (Imperial) | 0402 |
| Case Code (Metric) | 1005 |
| Package/Case | 0402 |
| Core Material | Alumina |
| Current Rating | 700mA |
| DC Resistance (DCR) | 100mR |
| Height - Seated (Max) | 0.016inch |
| Inductance | 1.2nH |
| Length | 0.039inch |
| Max DC Current | 700mA |
| Max Operating Temperature | 125°C |
| Min Operating Temperature | -40°C |
| Mount | Surface Mount |
| Package Quantity | 1 |
| Packaging | Cut Tape |
| Q Factor | 13 |
| Reach SVHC Compliant | Unknown |
| RoHS Compliant | Yes |
| Self Resonant Frequency | 12GHz |
| Series | WE-TCI |
| Shielding | Unshielded |
| Test Frequency | 500MHz |
| Width | 0.02inch |
Compliance
| RoHS | Compliant |
Datasheet
Wurth Electronics 744901012 Datasheet
Download the complete datasheet for Wurth Electronics 744901012 to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

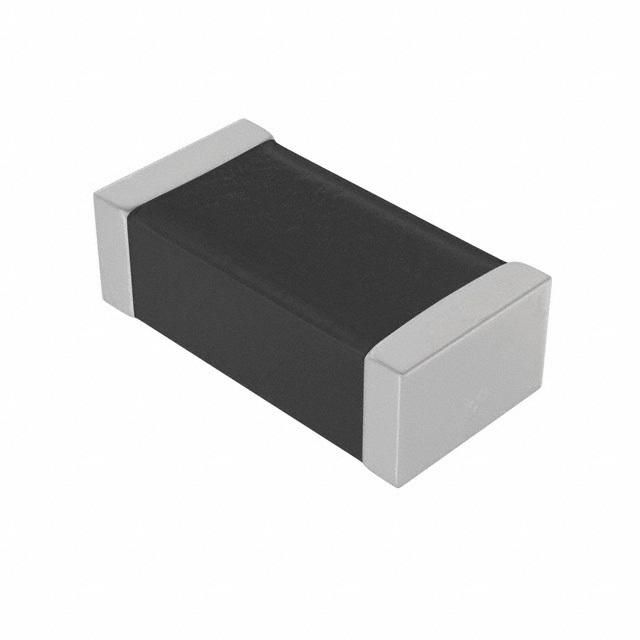

Product Images
