Surface mount transformer with 350µH inductance and a 1:1 turns ratio. Operating temperature range spans from -40°C to 85°C. Dimensions are 12.95mm length, 7.11mm width, and a maximum seated height of 5.33mm. This RoHS compliant component is designed for general applications.
MountingSurface Mount
Inductance350uH
Quick Jump:
Technical Specifications
Wurth Electronics 749013011 technical specifications.
General
| Height - Seated (Max) | 5.33mm |
| Inductance | 350uH |
| Length | 12.95mm |
| Max Operating Temperature | 85°C |
| Min Operating Temperature | -40°C |
| Mount | Surface Mount |
| Package Quantity | 1 |
| Reach SVHC Compliant | Unknown |
| RoHS Compliant | Yes |
| Series | WE-LAN |
| Turns Ratio | 1:1 |
| Width | 7.11mm |
Compliance
| RoHS | Compliant |
Datasheet
Wurth Electronics 749013011 Datasheet
Download the complete datasheet for Wurth Electronics 749013011 to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

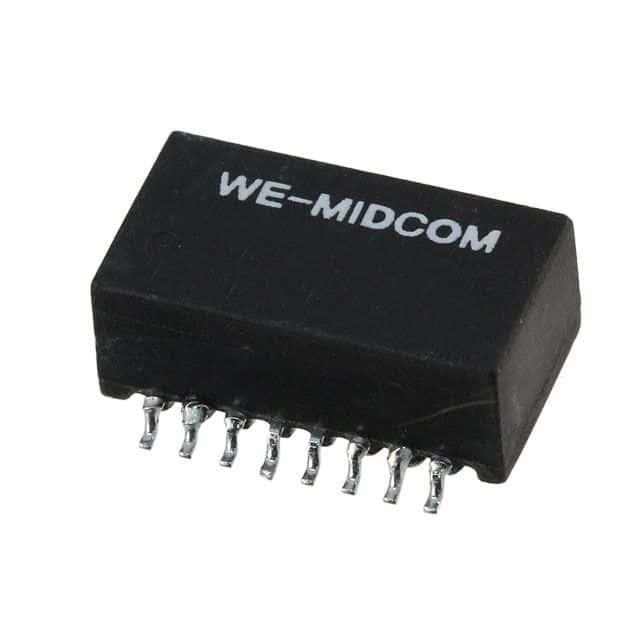

Product Images
