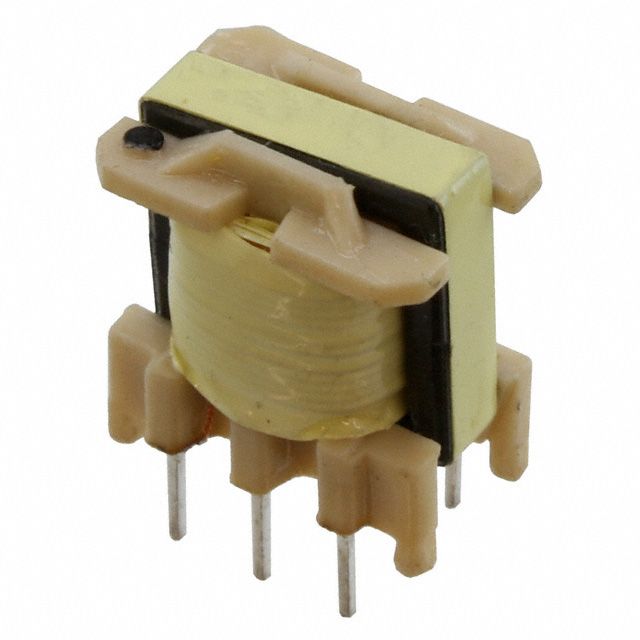

Power Transformer 4:1 4000VAC 6 Terminal PC Pin Thru-Hole
Sign in to ask questions about the Wurth Electronics 7491181024 datasheet using AI. Get instant answers about specifications, features, and technical details, ideal for finding information in larger documents.
Sign In to ChatWidest selection of semiconductors and electronic components in stock and ready to ship ™
Wurth Electronics 7491181024 technical specifications.
| Depth | 16.8mm |
| Frequency | 132kHz |
| Inductance | 2.8mH |
| Length | 15mm |
| Max Operating Temperature | 125°C |
| Min Operating Temperature | -40°C |
| Max Supply Voltage (AC) | 265V |
| Min Supply Voltage (AC) | 85V |
| Mount | Through Hole |
| Output Current | 125mA |
| Output Voltage | 24V |
| Packaging | Tray |
| Primary Inductance | 2.8mH |
| Reach SVHC Compliant | No |
| RoHS Compliant | Yes |
| Series | WE-UNIT |
| Turns Ratio | 4:1 |
| Width | 11mm |
| RoHS | Compliant |
