Frequency100kHz
MountingSurface Mount
Inductance50uH
Quick Jump:
Technical Specifications
Wurth Electronics 750311457 technical specifications.
General
DC Resistance (DCR)
115mR
Depth
12.7mm
Frequency
100kHz
Height - Seated (Max)
12.7mm
Inductance
50uH
Input Current
4A
Isolation Voltage
2.5kV
Lead Free
Lead Free
Length
17.75mm
Max Operating Temperature
125°C
Min Operating Temperature
-40°C
Mount
Surface Mount
Package Quantity
1
Packaging
Cut Tape
Primary Inductance
50H
Reach SVHC Compliant
Unknown
RoHS Compliant
Yes
Series
WE-FB
Turns Ratio
4:1
Width
13.46mm
Compliance
RoHS
Compliant
Datasheet
Wurth Electronics 750311457 Datasheet
Download the complete datasheet for Wurth Electronics 750311457 to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

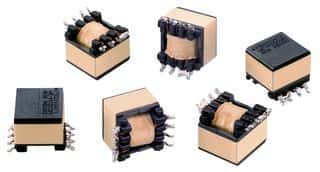

Product Images
