Frequency250kHz
Current Rating11.2A
MountingSurface Mount
Inductance7uH
Quick Jump:
Technical Specifications
Wurth Electronics 750311567 technical specifications.
General
Current Rating
11.2A
DC Resistance (DCR)
70mR
Depth
11.43mm
Frequency
250kHz
Height
11.43mm
Height - Seated (Max)
11.43mm
Inductance
7uH
Input Current
100A
Isolation Voltage
1.5kV
Length
15.24mm
Max DC Current
11.2A
Max Operating Temperature
125°C
Min Operating Temperature
-40°C
Mount
Surface Mount
Package Quantity
1
Packaging
Tape and Reel
Primary Inductance
7H
Reach SVHC Compliant
Unknown
RoHS Compliant
Yes
Series
WE-FB
Termination
SMD/SMT
Turns Ratio
2:1
Width
13.34mm
Compliance
RoHS
Compliant
Datasheet
Wurth Electronics 750311567 Datasheet
Download the complete datasheet for Wurth Electronics 750311567 to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

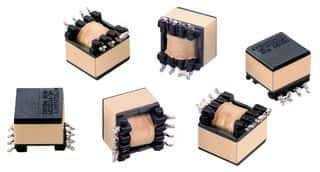

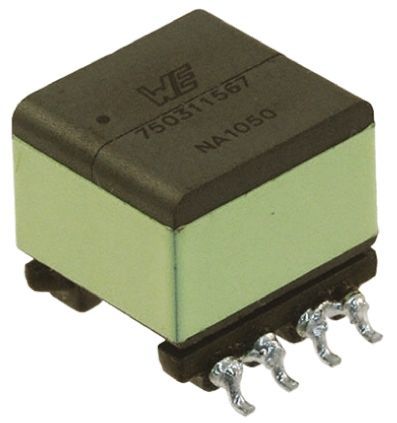

Product Images
