Surface mount flyback transformer with 12µH primary inductance, designed for 150kHz operation. Features a 16A maximum DC current rating and 1.5kV isolation voltage. Offers a 2:1 turns ratio and a low 15mΩ DC resistance. Operates across a -40°C to 125°C temperature range, packaged in tape and reel.
Frequency150kHz
Current Rating16A
MountingSurface Mount
Inductance12uH
Quick Jump:
Technical Specifications
Wurth Electronics 750311595 technical specifications.
General
Current Rating
16A
DC Resistance (DCR)
15mR
Depth
13.69mm
Frequency
150kHz
Height
13.69mm
Height - Seated (Max)
13.69mm
Inductance
12uH
Input Current
3A
Isolation Voltage
1.5kV
Length
32.31mm
Max DC Current
16A
Max Operating Temperature
125°C
Min Operating Temperature
-40°C
Mount
Surface Mount
Output Voltage
15V
Package Quantity
1
Packaging
Tape and Reel
Primary Inductance
12H
Reach SVHC Compliant
Unknown
RoHS Compliant
Yes
Series
WE-FB
Termination
SMD/SMT
Turns Ratio
2:1
Width
27.03mm
Compliance
RoHS
Compliant
Datasheet
Wurth Electronics 750311595 Datasheet
Download the complete datasheet for Wurth Electronics 750311595 to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

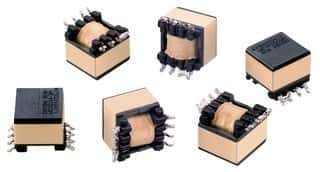

Product Images
