WURTH ELECTRONICS

750311596

Datasheet

18A Flyback Transformer, 12uH Inductance, 1.5kV Isolation, SMD

Wurth Electronics

750311596

Name: 750311596 Wurth Electronics
Brand: Wurth Electronics
SKU: 750311596

18A Flyback Transformer, 12uH Inductance, 1.5kV Isolation, SMD

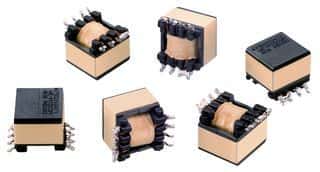

Surface mount flyback transformer with 12µH primary inductance, designed for 3A input current and rated for 18A maximum DC current. Features 1.5kV isolation voltage and a 1.5:1 turns ratio, operating efficiently at 150kHz. Offers a low DC resistance of 30mR and a wide operating temperature range from -40°C to 125°C. Dimensions are 32.31mm length, 27.03mm width, and 13.69mm height.

Frequency150kHz

Current Rating18A

MountingSurface Mount

Inductance12uH

Quick Jump:

Technical Specifications

Wurth Electronics 750311596 technical specifications.

General

Current Rating	18A
DC Resistance (DCR)	30mR
Depth	13.69mm
Frequency	150kHz
Height	13.69mm
Height - Seated (Max)	13.69mm
Inductance	12uH
Input Current	3A
Isolation Voltage	1.5kV
Length	32.31mm
Max DC Current	18A
Max Operating Temperature	125°C
Min Operating Temperature	-40°C
Mount	Surface Mount
Output Voltage	24V
Package Quantity	1
Packaging	Tape and Reel
Primary Inductance	12H
Reach SVHC Compliant	Unknown
RoHS Compliant	Yes
Series	WE-FB
Termination	SMD/SMT
Turns Ratio	1.5:1
Width	27.03mm
