SMD Switching Transformer with a 1.5:1 turns ratio, featuring primary DC resistance of 34mΩ and secondary DC resistance of 77mΩ. Operates at a frequency of 100kHz with a primary inductance of 9µH and an input current rating of 200A. This surface mount component offers an 8A maximum DC current, 15V output voltage, and 1.5kV isolation voltage, with a maximum operating temperature of 125°C.
Frequency100kHz
Current Rating8A
MountingSurface Mount
Inductance9uH
Quick Jump:
Technical Specifications
Wurth Electronics 750311624 technical specifications.
General
| Current Rating | 8A |
| DC Resistance (DCR) | 34mR |
| Depth | 12.7mm |
| Frequency | 100kHz |
| Height | 12.7mm |
| Height - Seated (Max) | 12.7mm |
| Inductance | 9uH |
| Input Current | 200A |
| Isolation Voltage | 1.5kV |
| Length | 17.75mm |
| Max DC Current | 8A |
| Max Operating Temperature | 125°C |
| Min Operating Temperature | -40°C |
| Mount | Surface Mount |
| Output Voltage | 15V |
| Package Quantity | 1 |
| Packaging | Tape and Reel |
| Primary Inductance | 9H |
| Reach SVHC Compliant | No |
| RoHS Compliant | Yes |
| Series | WE-FB |
| Shielding | Unshielded |
| Termination | SMD/SMT |
| Turns Ratio | 1.5:1 |
| Width | 13.46mm |
Compliance
| RoHS | Compliant |
Datasheet
Wurth Electronics 750311624 Datasheet
Download the complete datasheet for Wurth Electronics 750311624 to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

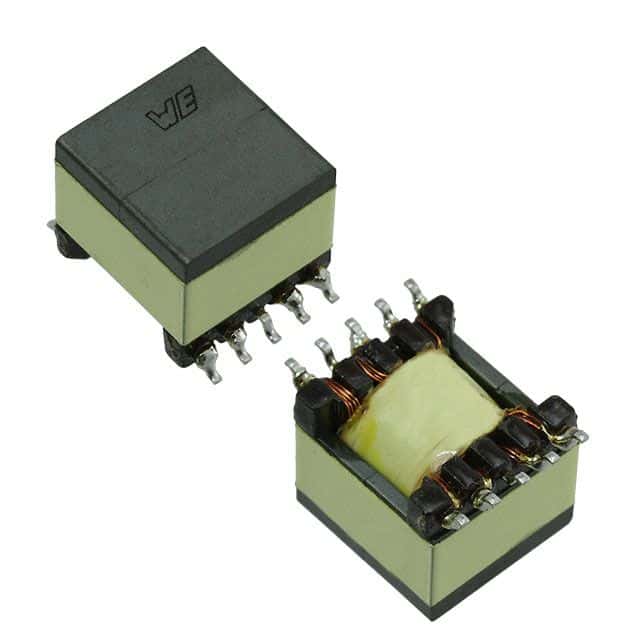

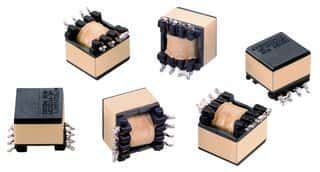

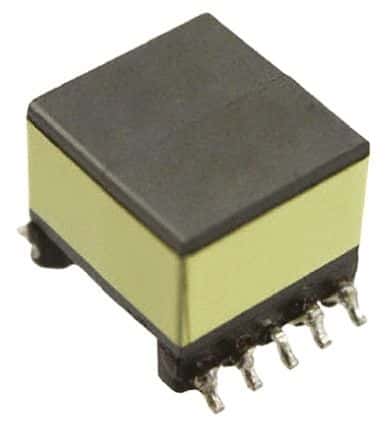

Product Images
