Surface mount flyback transformer with 80µH primary inductance, 1.5kV isolation voltage, and a 5:1 turns ratio. Designed for operation up to 200kHz with a maximum input voltage of 15V and a maximum DC current of 1A. Features a DC resistance of 325mR and an operating temperature range of -40°C to 125°C. Packaged on tape and reel for efficient assembly.
Frequency200kHz
Current Rating1A
MountingSurface Mount
Inductance80uH
Quick Jump:
Technical Specifications
Wurth Electronics 750311692 technical specifications.
General
| Current Rating | 1A |
| DC Resistance (DCR) | 325mR |
| Depth | 10.54mm |
| Frequency | 200kHz |
| Height | 10.54mm |
| Height - Seated (Max) | 10.54mm |
| Inductance | 80uH |
| Input Current | 3A |
| Isolation Voltage | 1.5kV |
| Length | 9.14mm |
| Max DC Current | 1A |
| Max Input Voltage | 15V |
| Min Input Voltage | 8V |
| Max Operating Temperature | 125°C |
| Min Operating Temperature | -40°C |
| Mount | Surface Mount |
| Output Current | 1mA |
| Output Power | 150mW |
| Package Quantity | 1 |
| Packaging | Tape and Reel |
| Primary Inductance | 80H |
| Reach SVHC Compliant | Unknown |
| RoHS Compliant | Yes |
| Series | WE-FB |
| Termination | SMD/SMT |
| Turns Ratio | 5:1 |
| Width | 9.14mm |
Compliance
| RoHS | Compliant |
Datasheet
Wurth Electronics 750311692 Datasheet
Download the complete datasheet for Wurth Electronics 750311692 to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

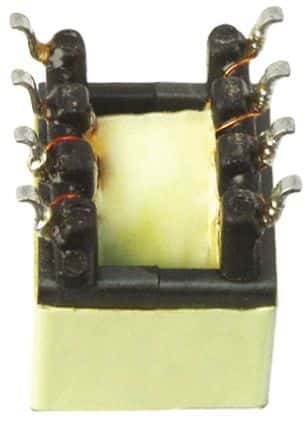

Product Images
