750311771
WURTH ELEKTRONIK 750311771 Pulse Transformer, 6:1, 500 H, 0.45 ohm, 2.5 kV
Frequency400kHz
Current Rating2.5A
MountingSurface Mount
Inductance500uH
Quick Jump:
Technical Specifications
Wurth Electronics 750311771 technical specifications.
General
| Current Rating | 2.5A |
| DC Resistance (DCR) | 450mR |
| Depth | 13.69mm |
| Frequency | 400kHz |
| Height | 13.69mm |
| Height - Seated (Max) | 13.69mm |
| Inductance | 500uH |
| Input Current | 100A |
| Isolation Voltage | 2.5kV |
| Length | 32.31mm |
| Max DC Current | 2.5A |
| Max Operating Temperature | 125°C |
| Min Operating Temperature | -40°C |
| Mount | Surface Mount |
| Package Quantity | 1 |
| Packaging | Tape and Reel |
| Primary Inductance | 500H |
| Reach SVHC Compliant | No |
| RoHS Compliant | Yes |
| Series | WE-FB |
| Termination | SMD/SMT |
| Turns Ratio | 6:1 |
| Width | 27.03mm |
Compliance
| RoHS | Compliant |
Datasheet
Wurth Electronics 750311771 Datasheet
Download the complete datasheet for Wurth Electronics 750311771 to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

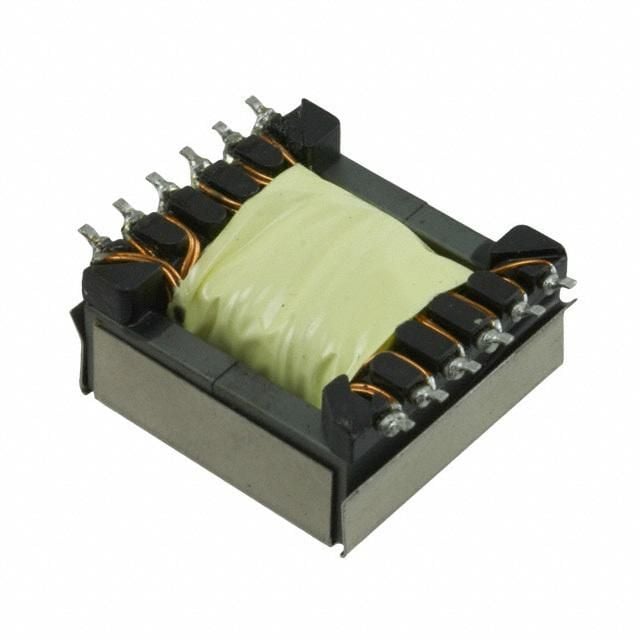

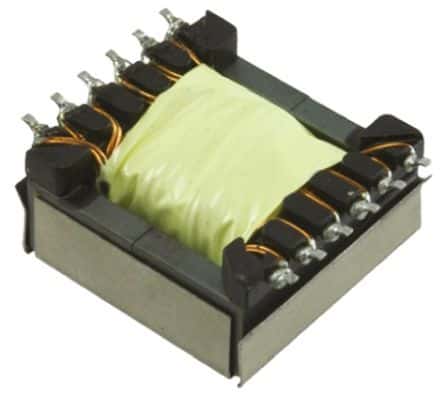

Product Images
