General purpose datacom transformer featuring a 2.5:1 turns ratio and 14µH primary inductance. Designed for surface mount applications, it offers 3A input current and 2.5A output current, supporting up to 30W output power. With an isolation voltage of 4kV and a DC resistance of 55mR, this RoHS compliant component operates across a temperature range of -40°C to 125°C. Dimensions include a 29.08mm length, 23.11mm width, and 11.43mm height.
MountingSurface Mount
Inductance14uH
Power30W
Quick Jump:
Technical Specifications
Wurth Electronics 750311797 technical specifications.
General
DC Resistance (DCR)
55mR
Depth
11.43mm
Height
11.43mm
Height - Seated (Max)
11.43mm
Inductance
14uH
Input Current
3A
Isolation Voltage
4kV
Length
29.08mm
Max Input Voltage
100V
Min Input Voltage
18V
Max Operating Temperature
125°C
Min Operating Temperature
-40°C
Mount
Surface Mount
Output Current
2.5A
Output Power
30W
Package Quantity
1
Packaging
Cut Tape
Primary Inductance
14H
Reach SVHC Compliant
Unknown
RoHS Compliant
Yes
Series
WE-FB
Turns Ratio
2.5:1
Width
23.11mm
Compliance
RoHS
Compliant
Datasheet
Wurth Electronics 750311797 Datasheet
Download the complete datasheet for Wurth Electronics 750311797 to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

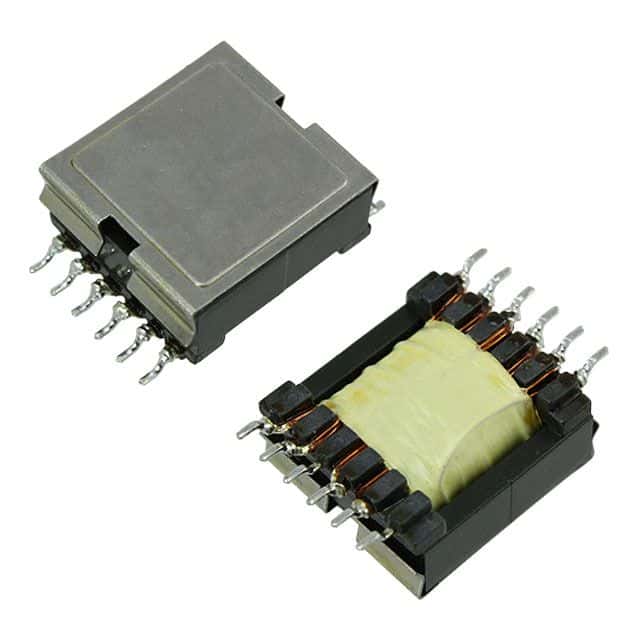

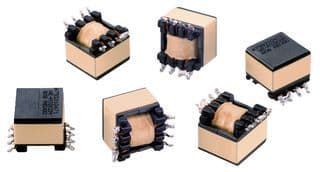

Product Images
