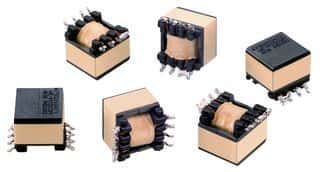

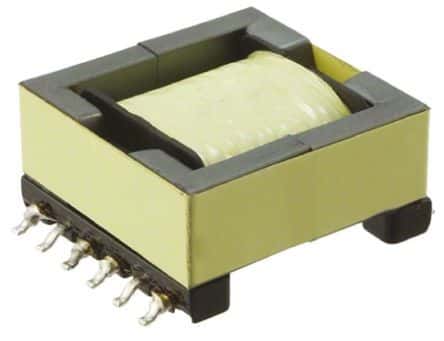

The WE-FB series transformer features a DC resistance of 38 milliohms and an inductance of 928 microhenries. It operates within a temperature range of -40°C to 125°C and is compliant with RoHS regulations. The transformer is available in a surface mount package with a seated height of 13.69mm and a length of 32.31mm. It has a maximum input current of 4A and an isolation voltage of 500V.
Checking distributor stock and pricing after the page loads.
Sign in to ask questions about the Wurth Electronics 750311889 datasheet using AI. Get instant answers about specifications, features, and technical details, ideal for finding information in larger documents.
Sign In to ChatWidest selection of semiconductors and electronic components in stock and ready to ship ™
| DC Resistance (DCR) | 38mR |
| Depth | 13.69mm |
| Frequency | 300kHz |
| Height - Seated (Max) | 13.69mm |
| Inductance | 928uH |
| Input Current | 4A |
| Isolation Voltage | 500V |
| Length | 32.31mm |
| Max Operating Temperature | 125°C |
| Min Operating Temperature | -40°C |
| Mount | Surface Mount |
| Package Quantity | 1 |
| Packaging | Cut Tape |
| Primary Inductance | 37H |
| Reach SVHC Compliant | Unknown |
| RoHS Compliant | Yes |
| Series | WE-FB |
| Turns Ratio | 2.5:2.5 |
| Width | 27.03mm |
| RoHS | Compliant |
