SMD/SMT switching converter transformer with 340µH inductance, designed for operating frequencies from 250 kHz to 550 kHz. Features dual primary and dual secondary windings, a 1.3:1 turns ratio, and a maximum secondary current of 350mA. This surface mount component operates within a temperature range of -40°C to 125°C, with dimensions of 12.7mm x 9.14mm x 7.62mm. RoHS compliant and supplied in cut tape packaging.
Frequency250 kHz to 550 kHz
PackageSMD/SMT
MountingSurface Mount
Inductance340uH
Quick Jump:
Technical Specifications
Wurth Electronics 750313638 technical specifications.
General
| Package/Case | SMD/SMT |
| Height | 7.62mm |
| Inductance | 340uH |
| Length | 9.14mm |
| Max Operating Temperature | 125°C |
| Min Operating Temperature | -40°C |
| Mount | Surface Mount |
| Operating Frequency | 250 kHz to 550 kHz |
| Package Quantity | 500 |
| Packaging | Cut Tape |
| Primary Winding(s) | Dual |
| RoHS Compliant | Yes |
| Secondary Current | 350mA |
| Secondary Winding(s) | Dual |
| Series | WE-PP, MID-PPTI |
| Termination | SMD/SMT |
| Turns Ratio | 1.3:1 |
| Weight | 0.028219oz |
| Width | 12.7mm |
Compliance
| RoHS | Compliant |
Datasheet
Wurth Electronics 750313638 Datasheet
Download the complete datasheet for Wurth Electronics 750313638 to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

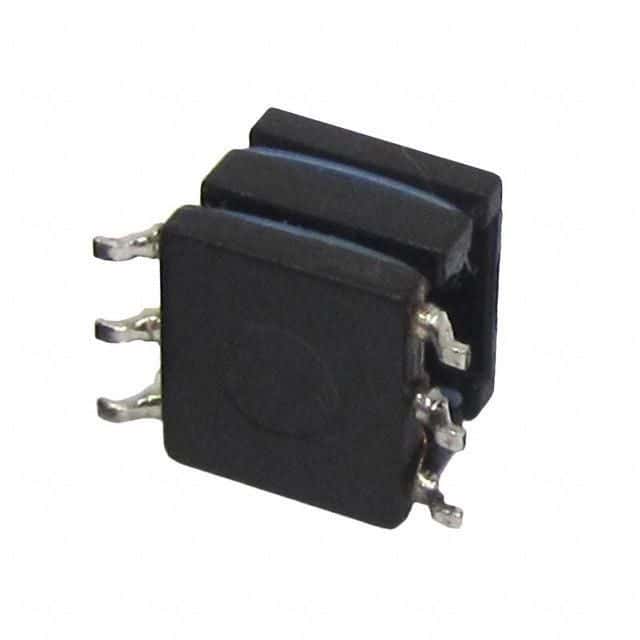

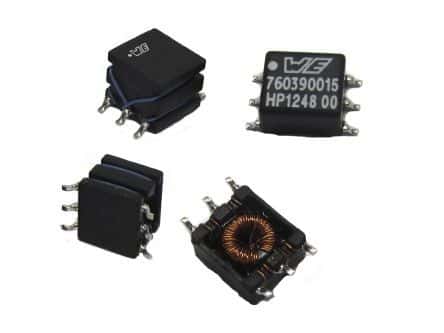

Product Images
