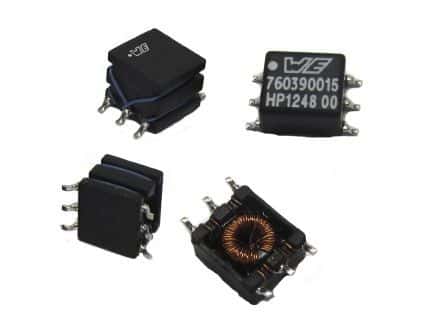

SMD/SMT push-pull transformer for switching converters, featuring 340µH inductance and a 150mA current rating. Designed for surface mount applications, this unshielded component offers 6.25kV isolation voltage and operates within a -40°C to 125°C temperature range. Packaged on tape and reel, it meets RoHS compliance and has a compact 9.14mm x 8mm x 7.62mm footprint.
PackageSMD/SMT
Current Rating150mA
MountingSurface Mount
Inductance340uH
Quick Jump:
Technical Specifications
Wurth Electronics 750313734 technical specifications.
General
| Package/Case | SMD/SMT |
| Current Rating | 150mA |
| Height | 7.62mm |
| Height - Seated (Max) | 7.62mm |
| Inductance | 340uH |
| Isolation Voltage | 6.25kV |
| Length | 9.14mm |
| Max Operating Temperature | 125°C |
| Min Operating Temperature | -40°C |
| Mount | Surface Mount |
| Packaging | Tape and Reel |
| RoHS Compliant | Yes |
| Series | MID-ITIPP |
| Shielding | Unshielded |
| Termination | SMD/SMT |
| Width | 8mm |
Compliance
| RoHS | Compliant |
Datasheet
Wurth Electronics 750313734 Datasheet
Download the complete datasheet for Wurth Electronics 750313734 to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.
