SMD/SMT surface mount datacom transformer featuring 340µH inductance and a 150mA current rating. Designed for switching converter applications, it offers 6.25kV isolation voltage and operates within a -40°C to 125°C temperature range. This unshielded component measures 9.14mm in length, 8mm in width, and 7.62mm in height, supplied on tape and reel.
PackageSMD/SMT
Current Rating150mA
MountingSurface Mount
Inductance340uH
Quick Jump:
Technical Specifications
Wurth Electronics 750313769 technical specifications.
General
| Package/Case | SMD/SMT |
| Current Rating | 150mA |
| Height | 7.62mm |
| Height - Seated (Max) | 7.62mm |
| Inductance | 340uH |
| Isolation Voltage | 6.25kV |
| Length | 9.14mm |
| Max Operating Temperature | 125°C |
| Min Operating Temperature | -40°C |
| Mount | Surface Mount |
| Packaging | Tape and Reel |
| RoHS Compliant | Yes |
| Series | MID-ITIPP |
| Shielding | Unshielded |
| Termination | SMD/SMT |
| Width | 8mm |
Compliance
| RoHS | Compliant |
Datasheet
Wurth Electronics 750313769 Datasheet
Download the complete datasheet for Wurth Electronics 750313769 to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

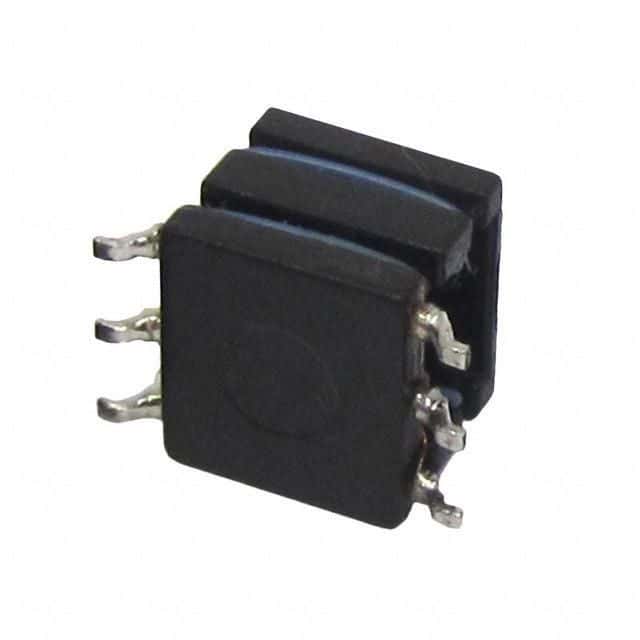

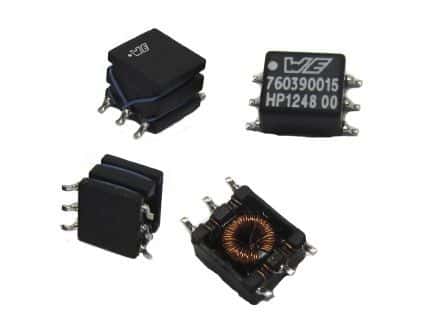

Product Images
