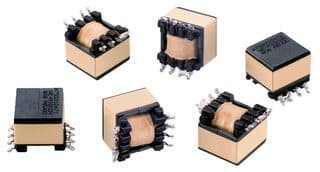

The WE-FB pulse transformer is a 100-pin component with a current rating of 650mA and a DC resistance of 2.9 ohms. It operates within a temperature range of -40°C to 125°C and is packaged in a tray. The transformer is RoHS compliant and has a primary inductance of 1.5mH. It is designed for use in high-frequency applications, with a frequency of up to 300kHz.
Checking distributor stock and pricing after the page loads.
Sign in to ask questions about the Wurth Electronics 750811048 datasheet using AI. Get instant answers about specifications, features, and technical details, ideal for finding information in larger documents.
Sign In to ChatWidest selection of semiconductors and electronic components in stock and ready to ship ™
| Package/Case | 100 |
| Current Rating | 650mA |
| DC Resistance (DCR) | 2.9R |
| Depth | 16mm |
| Frequency | 300kHz |
| Height | 16mm |
| Inductance | 1.5mH |
| Input Current | 3A |
| Isolation Voltage | 2.5kV |
| Length | 24.38mm |
| Max DC Current | 650mA |
| Max Operating Temperature | 125°C |
| Min Operating Temperature | -40°C |
| Mount | Through Hole |
| Packaging | Tray |
| Primary Inductance | 1.5mH |
| Reach SVHC Compliant | Unknown |
| RoHS Compliant | Yes |
| Series | WE-FB |
| Termination | Radial |
| Turns Ratio | 4.52:1 |
| Width | 20.32mm |
| RoHS | Compliant |
