Wireless charging receiving coil with 12µH inductance and 10% tolerance. Features a 3A current rating, 6A saturation current, and 160mΩ DC resistance. Operates within a -20°C to 105°C temperature range. Packaged in a 4832 case with dimensions of 48mm x 32mm x 1mm. RoHS compliant.
Package4832
Resistance160mR
Current Rating3A
Inductance12uH
Quick Jump:
Technical Specifications
Wurth Electronics 760308103202 technical specifications.
General
| Package/Case | 4832 |
| Current Rating | 3A |
| DC Resistance (DCR) | 160mR |
| Height | 1mm |
| Inductance | 12uH |
| Inductance Tolerance | 10% |
| Length | 48mm |
| Logic Function | Receiver |
| Max Operating Temperature | 105°C |
| Min Operating Temperature | -20°C |
| Package Quantity | 192 |
| Packaging | Bulk |
| Q Factor | 33 |
| Reach SVHC Compliant | Unknown |
| Resistance | 160mR |
| RoHS Compliant | Yes |
| Saturation Current | 6A |
| Self Resonant Frequency | 25MHz |
| Series | 1 |
| Tolerance | 10% |
| Width | 32mm |
Compliance
| RoHS | Compliant |
Datasheet
Wurth Electronics 760308103202 Datasheet
Download the complete datasheet for Wurth Electronics 760308103202 to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

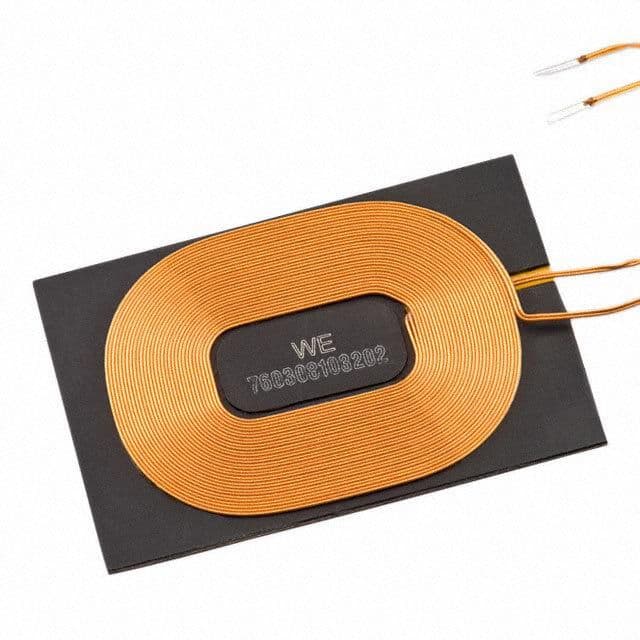

Product Images
