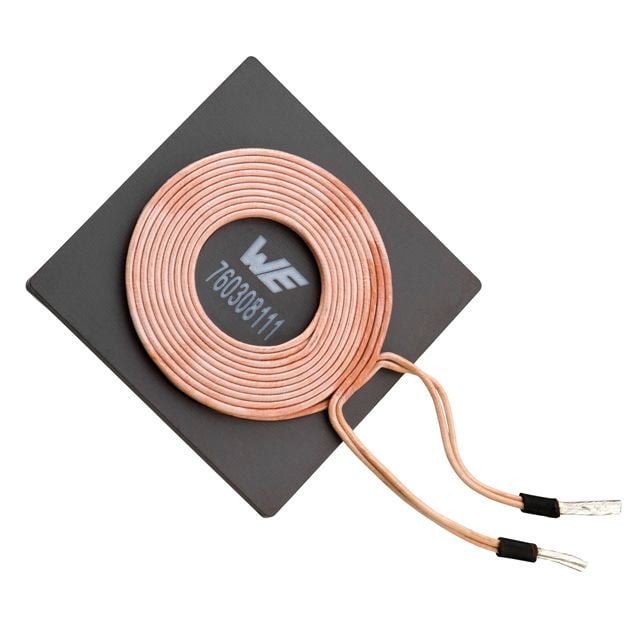

Power charging coil featuring 6.3µH inductance with a 10% tolerance, designed for wireless power transfer applications. This ferrite core component operates with a maximum DC current of 13A and a saturation current of 16A, exhibiting a low DC resistance of 24mΩ. With a Q factor of 80 at 125kHz, it offers efficient energy transfer. The coil is housed in a 53.3mm x 53.3mm x 6mm package, operates within a temperature range of -20°C to 105°C, and is RoHS compliant.
PackageA
Resistance20mR
Current Rating13A
Inductance6.3uH
Quick Jump:
Technical Specifications
Wurth Electronics 760308111 technical specifications.
General
| Package/Case | A |
| Core Material | Ferrite |
| Current Rating | 13A |
| DC Resistance (DCR) | 24mR |
| Depth | 6mm |
| Height | 6mm |
| Inductance | 6.3uH |
| Inductance Tolerance | 10% |
| Lead Free | Lead Free |
| Length | 53.3mm |
| Max DC Current | 13A |
| Max Operating Temperature | 105°C |
| Min Operating Temperature | -20°C |
| Packaging | Tray |
| Q Factor | 80 |
| Reach SVHC Compliant | Unknown |
| Resistance | 20mR |
| RoHS Compliant | Yes |
| Saturation Current | 16A |
| Self Resonant Frequency | 20MHz |
| Series | WE-WPCC |
| Test Frequency | 125kHz |
| Tolerance | 10% |
| Width | 53.3mm |
Compliance
| RoHS | Compliant |
Datasheet
Wurth Electronics 760308111 Datasheet
Download the complete datasheet for Wurth Electronics 760308111 to view detailed technical specifications.
