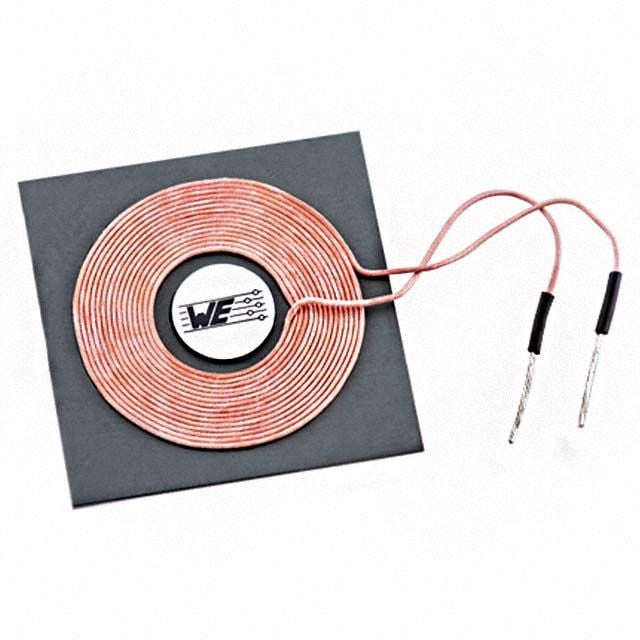

This wireless charging coil, designed for transmit and receive applications, features a 10µH inductance with a 5% tolerance. It operates with a 4.5A current rating and a saturation current of 8A, boasting a low DC resistance of 200mR. The ferrite core coil is housed in a 3737 package, measuring 37mm in length, 28mm in width, and 1.8mm in height and depth. With a Q factor of 50 and a self-resonant frequency of 15MHz, it supports radial termination and operates within a temperature range of -20°C to 105°C.
Checking distributor stock and pricing after the page loads.
Sign in to ask questions about the Wurth Electronics 760308201 datasheet using AI. Get instant answers about specifications, features, and technical details, ideal for finding information in larger documents.
Sign In to ChatWidest selection of semiconductors and electronic components in stock and ready to ship ™
Wurth Electronics 760308201 technical specifications.
| Package/Case | 3737 |
| Core Material | Ferrite |
| Current Rating | 4.5A |
| DC Resistance (DCR) | 200mR |
| Depth | 1.8mm |
| Height | 1.8mm |
| Inductance | 10uH |
| Inductance Tolerance | 5% |
| Length | 37mm |
| Logic Function | Receiver |
| Max DC Current | 4.5A |
| Max Operating Temperature | 105°C |
| Min Operating Temperature | -20°C |
| Packaging | Tray |
| Q Factor | 50 |
| Reach SVHC Compliant | Unknown |
| Resistance | 200mR |
| RoHS Compliant | Yes |
| Saturation Current | 8A |
| Self Resonant Frequency | 15MHz |
| Series | WE-WPCC |
| Termination | Radial |
| Test Frequency | 125kHz |
| Tolerance | 5% |
| Width | 28mm |
| RoHS | Compliant |
