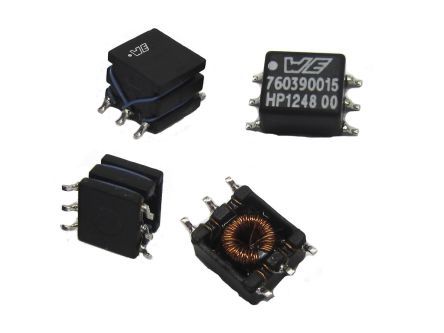

Surface mount general-purpose pulse transformer featuring a 1.3:1 turns ratio and 475µH inductance. Designed for datacom applications, it operates with a 150mA current rating and a frequency range up to 10kHz. This component offers 2.5kV isolation voltage and a wide operating temperature range from -40°C to 125°C. Packaged in tape and reel for automated assembly, it meets RoHS compliance.
Checking distributor stock and pricing after the page loads.
Sign in to ask questions about the Wurth Electronics 760390014 datasheet using AI. Get instant answers about specifications, features, and technical details, ideal for finding information in larger documents.
Sign In to ChatWidest selection of semiconductors and electronic components in stock and ready to ship ™
| Package/Case | SMD/SMT |
| Current Rating | 150mA |
| Frequency | 10kHz |
| Height | 4.19mm |
| Height - Seated (Max) | 4.19mm |
| Inductance | 475uH |
| Isolation Voltage | 2.5kV |
| Length | 10.05mm |
| Max DC Current | 150mA |
| Max Operating Temperature | 125°C |
| Min Operating Temperature | -40°C |
| Mount | Surface Mount |
| Package Quantity | 1 |
| Packaging | Tape and Reel |
| RoHS Compliant | Yes |
| Series | WE-PP |
| Termination | SMD/SMT |
| Width | 10.05mm |
| RoHS | Compliant |
