Frequency150kHz
PackageSMD/SMT
Resistance2.92R
MountingSurface Mount
Quick Jump:
Technical Specifications
Wurth Electronics 760871135 technical specifications.
General
Package/Case
SMD/SMT
Frequency
150kHz
Height
13.5mm
Height - Seated (Max)
14mm
Inductance
1250uH
Length
25.81mm
Max Input Voltage
265V
Min Input Voltage
85V
Max Operating Temperature
125°C
Min Operating Temperature
-40°C
Mount
Surface Mount
Output Current
550mA
Output Power
13.2W
Output Voltage
12V
Package Quantity
1
Packaging
Tape and Reel
Resistance
2.92R
RoHS Compliant
Yes
Series
WE-UOST
Shielding
Unshielded
Termination
SMD/SMT
Width
16.6mm
Compliance
RoHS
Compliant
Datasheet
Wurth Electronics 760871135 Datasheet
Download the complete datasheet for Wurth Electronics 760871135 to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

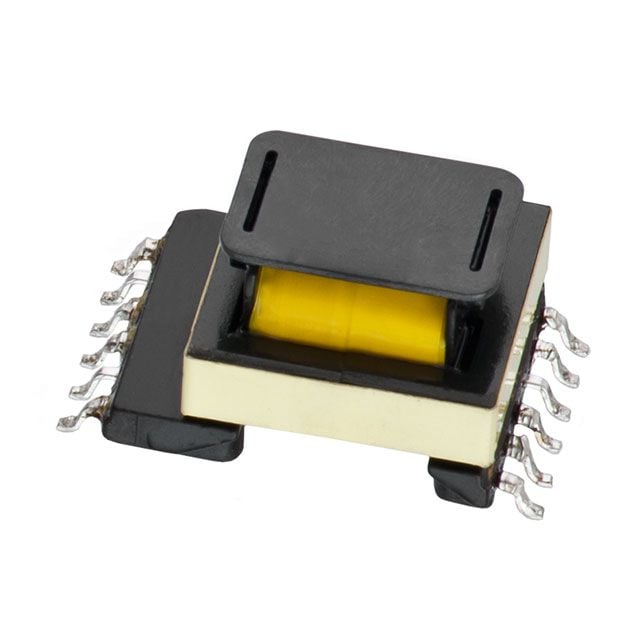

Product Images
