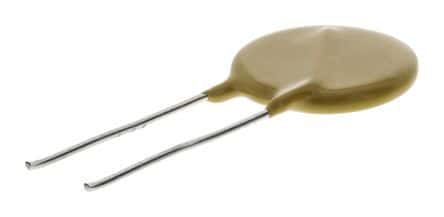

Radial leaded varistor for through-hole mounting, featuring 303J energy absorption and a 10kA maximum surge current. Offers a 275V AC voltage rating and 350V DC rated voltage, with a clamping voltage of 710V at 100A. Operating temperature range spans -40°C to 125°C, with a 10mm lead pitch and 23mm diameter. This RoHS compliant component provides 430V varistor voltage.
Capacitance860pF
MountingThrough Hole
Quick Jump:
Technical Specifications
Wurth Electronics 820422711 technical specifications.
General
| Capacitance | 860pF |
| Clamping Current | 100A |
| Clamping Voltage | 710V |
| Diameter | 23mm |
| Energy | 303J |
| Height | 25mm |
| Lead Pitch | 10mm |
| Length | 23mm |
| Max Operating Temperature | 125°C |
| Min Operating Temperature | -40°C |
| Max Surge Current | 10kA |
| Max Varistor Voltage | 473V |
| Min Varistor Voltage | 387V |
| Max Voltage Rating (AC) | 275V |
| Max Voltage Rating (DC) | 350V |
| Mount | Through Hole |
| Number of Circuits | 1 |
| Reach SVHC Compliant | Unknown |
| RoHS Compliant | Yes |
| Thickness | 5.7mm |
| Varistor Voltage | 430V |
| Voltage Rating (AC) | 275V |
| DC Rated Voltage | 350V |
| Width | 5mm |
Compliance
| RoHS | Compliant |
Datasheet
Wurth Electronics 820422711 Datasheet
Download the complete datasheet for Wurth Electronics 820422711 to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.
