SMT standoff, constructed from steel with tin plating, features a round female thread for M3 fasteners. This non-threaded standoff offers a 3mm body length and a 3mm overall height, with an external mount. Designed for surface-mount technology (SMT), it has an outside diameter of 0.236 inches and a width of 6mm. The component is lead-free.
PackageSMD/SMT
MountingExternal
Quick Jump:
Technical Specifications
Wurth Electronics 9774030360R technical specifications.
General
| Body Length | 3mm |
| Package/Case | SMD/SMT |
| Lead Free | Lead Free |
| Length | 0.173inch |
| Material | Steel |
| Mount | External |
| Outside Diameter | 0.236inch |
| Plating | Tin |
| Reach SVHC Compliant | Unknown |
| Series | WA-SMSI |
| Threaded/Unthreaded | Threaded |
| Width | 6mm |
Compliance
| RoHS | Compliant |
Datasheet
Wurth Electronics 9774030360R Datasheet
Download the complete datasheet for Wurth Electronics 9774030360R to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

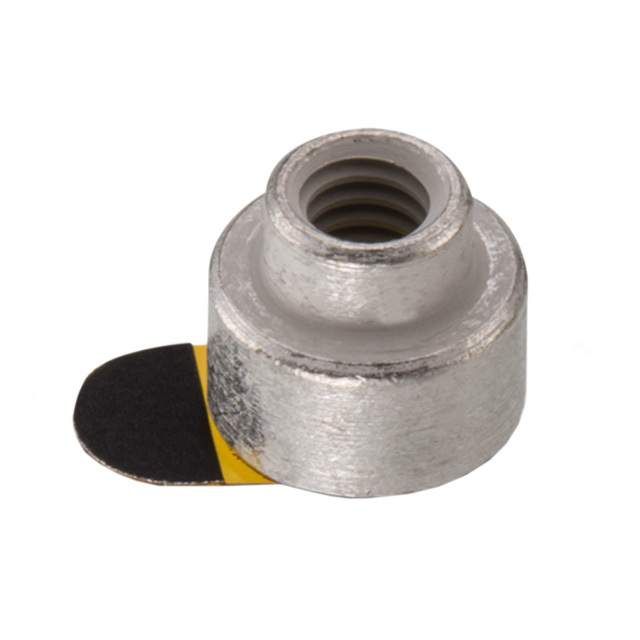

Product Images
