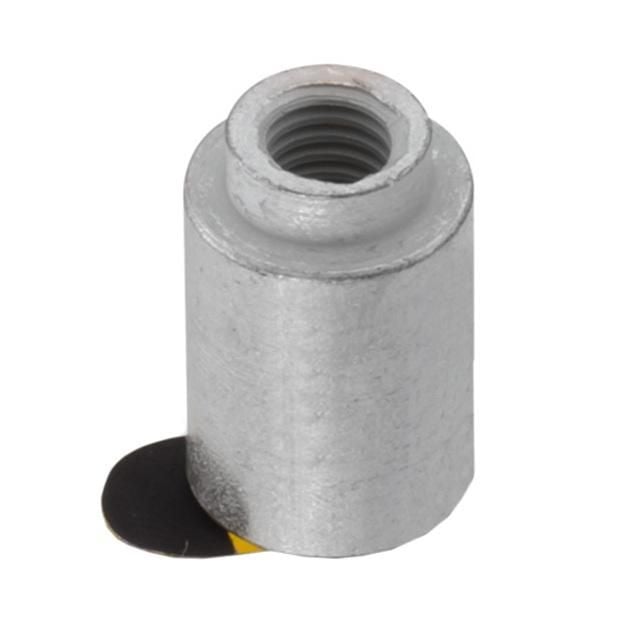

SMD spacer, round, steel, 8mm, M3. Features a body length of 8mm and a height of 8.1mm, with an outside diameter of 0.236 inches and a width of 6mm. Constructed from steel with tin plating, this threaded component is designed for surface-mount technology (SMT) and operates within a temperature range of -55°C to 150°C. Packaged on tape and reel for efficient automated assembly.
PackageSMD/SMT
MountingExternal
Quick Jump:
Technical Specifications
Wurth Electronics 9774080360R technical specifications.
General
| Body Length | 8mm |
| Package/Case | SMD/SMT |
| Height | 8.1mm |
| Length | 0.37inch |
| Material | Steel |
| Max Operating Temperature | 150°C |
| Min Operating Temperature | -55°C |
| Mount | External |
| Outside Diameter | 0.236inch |
| Packaging | Tape and Reel |
| Plating | Tin |
| Reach SVHC Compliant | Unknown |
| Series | WA-SMSI |
| Threaded/Unthreaded | Threaded |
| Width | 6mm |
Compliance
| RoHS | Compliant |
Datasheet
Wurth Electronics 9774080360R Datasheet
Download the complete datasheet for Wurth Electronics 9774080360R to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.
