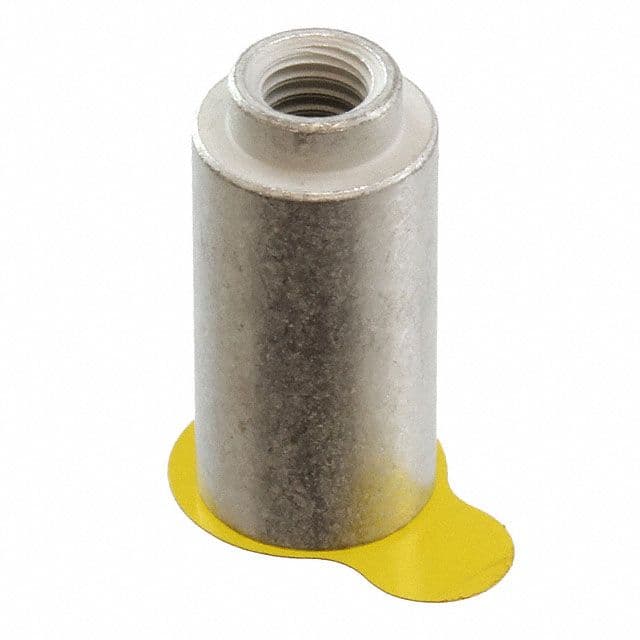

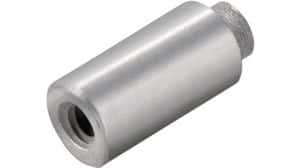

SMT standoff, constructed from steel with tin plating, features a non-threaded body and a round female M3 thread. This component offers an 11mm body length and an 11.1mm height, with an overall length of 0.488 inches and an outside diameter of 0.236 inches (6mm width). Designed for surface-mount technology (SMT) applications, it operates within a temperature range of -55°C to 150°C and is supplied on tape and reel packaging.
Checking distributor stock and pricing after the page loads.
Sign in to ask questions about the Wurth Electronics 9774110360R datasheet using AI. Get instant answers about specifications, features, and technical details, ideal for finding information in larger documents.
Sign In to ChatWidest selection of semiconductors and electronic components in stock and ready to ship ™
Wurth Electronics 9774110360R technical specifications.
| Body Length | 11mm |
| Package/Case | SMD/SMT |
| Height | 11.1mm |
| Lead Free | Lead Free |
| Length | 0.488inch |
| Material | Steel |
| Max Operating Temperature | 150°C |
| Min Operating Temperature | -55°C |
| Mount | External |
| Outside Diameter | 0.236inch |
| Packaging | Tape and Reel |
| Plating | Tin |
| Reach SVHC Compliant | Unknown |
| Series | WA-SMSI |
| Threaded/Unthreaded | Threaded |
| Width | 6mm |
| RoHS | Compliant |
