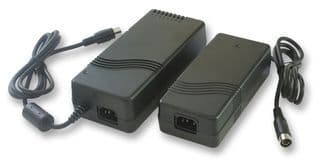

Triple output AC/DC power supply, 42W maximum output power. Features 5V at 5A, 15V at 2A, and -15V at 800mA outputs. Operates from 90-264V AC input with 80% efficiency. Includes a 1.22m lead with a 5-pin DIN output connector. Designed for desktop mounting, with a maximum operating temperature of 60°C.
Checking distributor stock and pricing after the page loads.
Sign in to ask questions about the XP Power AEH45UM32 datasheet using AI. Get instant answers about specifications, features, and technical details, ideal for finding information in larger documents.
Sign In to ChatWidest selection of semiconductors and electronic components in stock and ready to ship ™
XP Power AEH45UM32 technical specifications.
| Current - Output 1 | 5A |
| Current - Output 2 | 2A |
| Current - Output 3 | 800mA |
| Efficiency | 80% |
| Lead Length | 1.22m |
| Max Input Voltage (AC) | 264V |
| Min Input Voltage (AC) | 90V |
| Max Input Voltage | 264V |
| Min Input Voltage | 90V |
| Max Operating Temperature | 60°C |
| Max Output Current | 2A |
| Max Output Power | 42W |
| Max Power Dissipation | 67W |
| Mount | Desktop |
| Nominal Output Voltage | -15V |
| Number of Outputs | 3 |
| Output Connector | DIN, 5 Pin |
| Output Power | 42W |
| Output Voltage | -15V |
| Reach SVHC Compliant | No |
| Series | AEH45 (45W) |
| Voltage - Output 1 | 5V |
| Voltage - Output 2 | 15V |
| Voltage - Output 3 | -15V |
| Width | 76mm |
| RoHS | Not Compliant |
